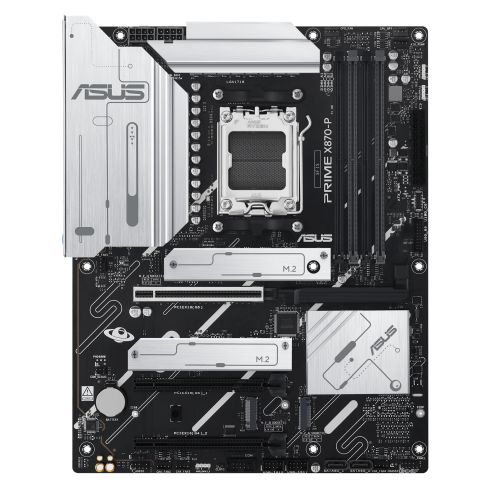

Asus PRIME X870-P, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, 2.5G LAN, 4x M.2

Asus PRIME X870-P, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, 2.5G LAN, 4x M.2

£279.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD X870
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: “DDR5 (Dual Channel)
    ECC and Non-ECC, Un-buffered Memory
    Supports AMD EXPO
    ASUS Enhanced Memory Profile”
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    2 x USB4 (40Gbps) support USB Type-C display outputs
  • PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
    1 x PCIe 5.0 x16 (supports x16 mode)

    Ryzen 8000 CPUs:
    1 x PCIe 4.0 x16 (supports x8/x4 mode)

    AMD X870 Chipset:
    3 x PCIe 4.0 x16 (supports x1 mode)

  • Storage: 2 x SATA III
    4 x M.2

    Ryzen 9000 & 7000 CPUs:
    M.2_1 (2280) – PCIe 5.0 x4

    Ryzen 8000 CPUs:
    M.2_1 (2280) – PCIe 4.0 x4

    X870E Chipset:
    M.2_2 (2242/2260/2280) – PCIe 4.0 x4
    M.2_3 (2280 ) – PCIe 4.0 x4
    M.2_4 (2280 ) – PCIe 3.0 x2

  • RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
  • Wireless: “Wi-Fi 7
    2×2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band
    Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
    Bluetooth v5.4″
  • LAN: 2.5GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    2 x USB4 (40Gbps) Type-C
    1 x USB 10Gbps Type-A
    3 x USB 5Gbps Type-A
    4 x USB 2.0

    Front:
    1 x USB 10Gbps Type-C
    2 x USB 5Gbps
    4 x USB 2.0

  • Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
    1 x USB 10Gbps Type-A
    3 x USB 5Gbps Type-A
    4 x USB 2.0
    1 x HDMI
    1 x Wi-Fi module
    1 x Realtek 2.5Gb Ethernet
    3 x Audio jacks
    1 x BIOS FlashBack button
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    4 x 4-pin Chassis Fan
    1 x 24-pin Main
    2 x 8-pin +12V CPU
    4 x M.2 (Key M)
    2 x SATA 6Gb/s
    1 x USB 10Gbps USB Type-C
    1 x USB 5Gbps
    2 x USB 2.0
  • .: 3 x Addressable Gen 2
    1 x Clear CMOS
    1 x COM Port header
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x SPI TPM (14-1 pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x ASUS WiFi Q-Antenna
    1 x M.2 rubber package
    2 x Screw packages for M.2 SSD
    Documentation
    1 x Quick start guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.2500 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)

In stock

EAN: 4711387723036 SKU: 90MB1IT0-M0EAY0 Category:

Description



ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  • Advanced AI PC-ready
  • 14+2+1 DrMOS
  • PCIe 5.0 x16 slot with full support for next-gen graphics cards
  • DDR5 slots
  • Four M.2 slots
  • WiFi 7
  • Realtek 2.5 Gb Ethernet
  • USB 40Gbps, HDMI
  • USB 10Gbps Type-A
  • Front USB 10 Gbps Type-C connector
  • SATA 6Gbps ports
  • USB 5 Gbps header
  • Aura Sync RGB lighting







AI Solutions
ASUS AI Solutions, including AI Networking II for real-time bandwidth optimization and AI Cooling II for thermal control, offer new levels of ultrafast connectivity, performance and efficient cooling.

  • AI Networking II – Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
  • AI Cooling II – Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Robust power design

Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

  • Eight-layer PCB design – Enhanced stability and overclocking.
  • ProCool connectors – Proprietary 8 + 8 pin connectors improve PSU connection.
  • Power Saving – Optimize power with CPU, lighting, and fan settings.
  • Digi+ VRM control – Real-time voltage control.

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME X870-P WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

Four M.2 slots (up to 128 Gbps)

PRIME X870-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by design


The PRIME X870-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
  • ASUS Fan Xpert 4 – ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.
  • Cooler compatibility – ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Empowering connections

The PRIME X870-P WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.
  • WiFi 7
  • 2.5Gb Ethernet
  • PCIe 5.0
  • USB 40Gbps
  • PCIe 5.0 slot
  • USB 10Gbps

Personalization

The PRIME X870-P WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS – The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS GlideX – Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
  • ASUS DriverHub – Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate – Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync – Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable Gen 2 RGB headers – Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.






DIY Friendly
The PRIME X870-P WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
  • Q-Antenna – With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
  • PCIe Slot Q-Release – A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.
  • M.2 Q-Latch – The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
  • Q-LED Core – The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
  • Pre-Mounted I/O Shield – Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
  • BIOS FlashBack – BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
  • SafeSlot – PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.





Additional information

Brand

Asus
MPN

90MB1IT0-M0EAY0
