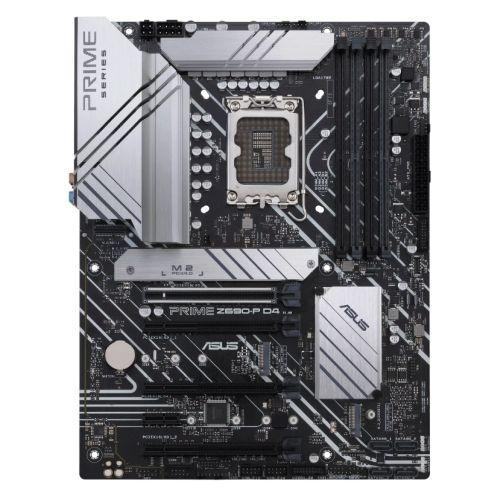

Asus PRIME Z690-P D4-CSM – Corporate Stable Model, Intel Z690, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

£261.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel Z690
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 5333(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 4.0 x16 (supports x4 mode)
    2 x PCIe 3.0 x16 (supports x4 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280/22110) – PCIe 4.0 x4
    1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
    1 x M.2 (2242/2260/2280/22110) – SATA & PCIe 4.0
  • RAID: “Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10”
  • Wireless:
  • LAN: 2.5GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0

    Front:
    1 x USB 3.2 Gen1 Type-C
    4 x USB 3.2 Gen1
    4 x USB 2.0

  • Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 ype-A
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x V-M.2
    1 x Realtek 2.5Gb Ethernet
    5 x Audio jacks
    1 x Optical S/PDIF out
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    3 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x 4-pin +12V
    3 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1 Type-C
    2 x USB 3.2 Gen1
    2 x USB 2.0
  • .: 3 x Addressable Gen2
    1 x AURA RGB
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
    1 x SPI TPM (14-1pin)
    1 x 20-5pin System Panel
    1 x Thunderbolt
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x M.2 Rubber Package
    2 x M.2 SSD screw packages
    1 x Support DVD
    1 x ACC Express Activation Key Card
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.8000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN

In stock

SKU: 90MB18P0-M0EAYC Category:

Description

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS power stages, DDR4, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header and Aura Sync RGB lighting


  • Intel® LGA 1700 socket: Ready for 13th & 12th gen Intel® processors
  • Enhanced power solution: 14+1 DrMOS power stages, 8+4 pin ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection






ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.


ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.


Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.





Cooling

Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customisation

Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.







Additional information

Weight 1.8 kg
Brand

Asus

MPN

90MB18P0-M0EAYC
