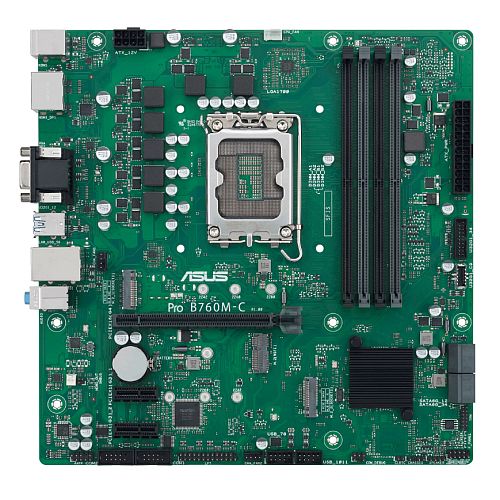

Asus PRO B760M-C-CSM – Corporate Stable Model, Intel B760, 1700, Micro ATX, 4 DDR5, VGA, HDMI, 2 DP, GB LAN, PCIe4, 2x M.2

Asus PRO B760M-C-CSM – Corporate Stable Model, Intel B760, 1700, Micro ATX, 4 DDR5, VGA, HDMI, 2 DP, GB LAN, PCIe4, 2x M.2

£158.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 6200(OC)
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
    2 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: –
  • LAN: GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: “4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen1 Header”
  • Back Panel I/O Ports: 2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    2 x DisplayPorts
    1 x HDMI
    1 x VGA
    1 x Intel 1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 keyboard
    1 x PS/2 mouse
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Clear CMOS
    1 x Chassis Intrude
    2 x COM Port
  • .: 1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Clear CMOS
    1 x Chassis Intrude
    2 x COM Port
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x Screw package for M.2 SSD
    1 x Screw package for M.2 Key E
    1 x ACC Express Activation Key Card
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.1000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

In stock

EAN: 4711387014691 SKU: 90MB1DX0-M1EAYC Category:

Description



Micro-ATX B760 business motherboard with enhanced security, reliability and manageability and serviceability


  • Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: A self-recovering BIOS
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®



Pro

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.



PCIe 4.0
This business motherboard is specially designed for 13th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.

Asus Shield
Enhances system security from bottom to top
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147

ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot

ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS

The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

  • Ensures safe BIOS updates
  • Reduces maintenance frequency and costs
  • Requires no extra software
  • Provides automatic update failure detection and recovery

Asus Reliant
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Event Log
A built-in event log enables easier troubleshooting by capturing useful system information
BIOS updates
Update status, latest version and update time

AC power loss
Abnormal power loss events

RTC reset
Time of real-time-clock (RTC) reset

Chassis intrusion
Record of when chassis is opened

Hardware changes
Modifications to CPU, memory or HDDs

Hardware status
USB over current, CPU over temperature, and CPU over voltage events

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
  • BIOS Value Edit Tool – Customize the BIOS options
  • BIOS Boot Logo Tool – Brand your builds with a customized boot logo
  • OEM Activation (OA) Tools – OEM Activation (OA) Tools Add or remove the OEM Activation key
  • Desktop Management Interface (DMI) – Desktop Management Interface (DMI) Easily add customer information, such as company name, to the BIOS
  • Intel® Management Engine (Intel® ME) Driver – Intel® Management Engine (Intel® ME) Driver Update the Management Engine without flashing the whole BIOS

Asus Serviceability
Facilitate the assembly process and enable efficient troubleshooting

Q-LED

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.



COM Debug header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card.



Box headers
All USB headers are box style, enabling fast connector installation and preventing pin damage.



Fix-position connectors

Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.





Additional information

Weight 1.1 kg
Brand

Asus
MPN

90MB1DX0-M1EAYC
