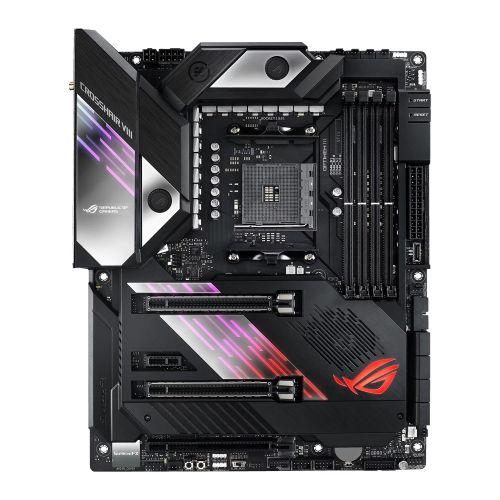

Asus ROG CROSSHAIR VIII FORMULA, AMD X570, AM4, ATX, 4 DDR4, SLI/XFire, Wi-Fi, 5GB LAN, PCIe4, RGB Lighting, M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM4
• Chipset: AMD X570
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 3rd Gen Ryzen CPUs:
  4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz

  2nd Gen Ryzen CPUs:
  3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz

  2nd and 1st Gen Ryzen CPUs:
  3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz

• Maximum Memory: 128GB
• Graphics: –
• Graphics Ports: –
• Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology
  Supports AMD 3-Way CrossFireX Technology
  Supports AMD 2-Way CrossFireX Technology
• PCI/PCI Express: Ryzen 3rd Gen CPUs:
  2 x PCIe 4.0 x16 (x16 or dual x8)

  Ryzen 2nd Gen CPUs:
  2 x PCIe 3.0 x16 (x16 or dual x8)

  Ryzen 1st/2nd Gen CPUs:
  1 x PCIe 3.0 x16 (x8 mode)

  AMD X570 chipset:
  1 x PCIe 4.0 x16 (x4 mode)
  1 x PCIe 4.0 x1

• Storage: 8 x SATA III
  1 x M.2 (2242/2260/2280) – SATA & PCIe
  1 x M.2 (2242/2260/2280/22110) – SATA & PCIe
• RAID: “RAID 0, 1, 10”
• Wireless: Wireless 802.11 a/b/g/n/ac
  Bluetooth 5.0
• LAN: 5GB LAN & GB LAN
• Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
• USB Ports Supported: “1 x USB 3.2 Gen2 Type-C (at back)
  6 x USB 3.2 Gen2 Type-A (at back)
  1 x USB 3.2 Gen2 Type-A BIOS Flash (at back)
  8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x USB 3.2 Gen2 Type-C Front Panel Header”
• Back Panel I/O Ports: 1 x Optical S/PDIF out
  1 x Clear CMOS button
  1 x USB BIOS Flashback Button
  1 x ASUS Wi-Fi Module
  1 x Gold-plated audio jacks
  4 x USB 3.2 Gen 1
  8 x USB 3.2 Gen 2
  Anti-surge LAN (RJ45)
  1 x AQC-111C 5G LAN
• Internal I/O Connectors: 1 x PCH_FAN
  2 x Aura RGB Strip
  2 x Addressable Gen 2
  2 x M.2
  8 x SATA 6Gb/s
  1 x CPU Fan
  1 x CPU OPT Fan
  3 x Chassis Fan
  1 x Optional Fan
  1 x AIO_PUMP
  1 x H_AMP fan
  1 x W_PUMP+
• .: 1 x 24-pin EATX
  1 x 8-pin ATX 12V
  1 x 4-pin ATX 12V
  1 x Front audio
  1 x Slow Mode switch
  1 x LN2 Mode
  1 x Power-on button
  1 x Reset button
  1 x Node
  1 x Safe Boot button
• .: 1 x ReTry button
  1 x System panel
  1 x W_IN
  1 x W_OUT
  1 x W_FLOW
  1 x Thermal sensor
  1 x Speaker
  2 x USB 2.0
  2 x USB 3.2 Gen1
  1 x USB 3.2 Gen2 Type-C Front Panel
• Accessories: User manual
  1 x ROG logo plate sticker
  4 x SATA power cable
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x ROG big sticker
  1 x Q-Connector
  1 x Wi-Fi Antenna
  1 x Extension Cable for RGB strips (80cm)
  1 x Extension cable for Addressable LED
• .: 1 x ROG coaster
  2 x ROG weave SATA 6G cable
  1 x ROG Thank you card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.5000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
