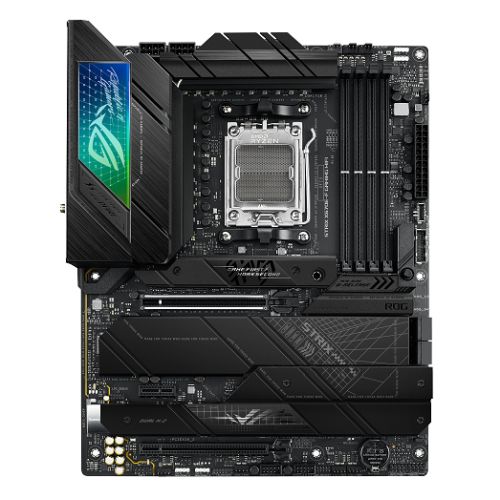

Asus ROG STRIX X670E-F GAMING WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

£488.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD X670
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
    1 x PCIe 4.0 x16 (supports x4 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2242/2260/2280/22110) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
  • RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
  • Wireless: Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.2
  • LAN: 2.5GB LAN
  • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
    2 x USB 3.2 Gen2 Type-C (at back)
    7 x USB 3.2 Gen2 Type-A (at back)
    2 x USB 3.2 Gen1 (at mid-board)
    6 x USB 2.0 (at mid-board)
    1 x Front USB 3.2 Gen2x2 Type-C connector
  • Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 (Type-C)
    9 x USB 3.2 Gen2 (7 Type-A, 2 Type-C)
    2 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x Wi-Fi Module
    1 x Intel I225-V 2.5Gb Ethernet
    5 x Gold-plated audio jacks
    1 x Optical S/PDIF out
    1 x BIOS FlashBack  button
    1 x Clear CMOS button “
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    5 x 4-pin Chassis Fan
    1 x 24-pin Main
    2 x 8-pin +12V
    4 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2x2 connector (Type-C)
    1 x USB 3.2 Gen1
    2 x USB 2.0
    3 x Addressable Gen2
  • .: 1 x Aura RGB
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio (AAFP)
    1 x 20-3 pin System Panel
    1 x Thermal Sensor
    1 x Thunderbolt
  • Accessories: 2 x SATA 6Gb/s cables
    1 x Thermal pad for M.2
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties pack
    1 x M.2 Q-Latch package for M.2 backplate
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    2 x Rubber Packages for M.2
    1 x Rubber Package for M.2 backplate
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.6000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting

Out of stock

SKU: 90MB1BA0-M0EAY0 Category:

Description



The ROG Strix X670E-F Gaming WiFi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of AMD Ryzen™ 7000 Series processors.



Black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.



  • Power Stages – 16 + 2 teamed power solution rated for 90A per stage
  • Overclocking Technologies – Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
  • AI Cooling II – AI Cooling II uniquely balances noise and thermals for your system with a single click
  • PCIe 5.0 – An x16 slot and two on-board M.2 slots are PCIe Gen 5-ready
  • DDR5 – 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
  • DIY Friendly – Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
  • WiFi 6E – Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band







All-Round Performance
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-F, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.




Leading Connectivity
The ROG Strix X670E-F Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.




Play In Style
A black PCB and heatsinks match most hardware, and customizable RGB lighting furthers its flexibility. Pair the ROG Strix X670E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.




Software Utilities
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.








                                             ** Click here for full product details **

Additional information

Weight 2.6 kg
Brand

ASUS

MPN

90MB1BA0-M0EAY0
