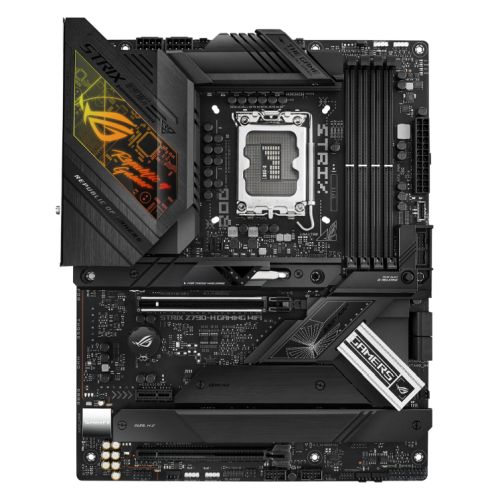

Asus ROG STRIX Z790-H GAMING WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16 (supports x4 or x4/x4 mode)
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) – PCIe
  1 x M.2 (2242/2260/2280) – PCIe
  1 x M.2 (2242/2260/2280/22110) – PCIe
  1 x M.2 (2242/2260/2280) – SATA & PCIe
• RAID: “Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10”
• Wireless: Wi-Fi 6E
  2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
• USB Ports Supported: “1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  2 x USB 3.2 Gen2 Type-A (at back)
  6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2x2 Header”
• Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 Type-C)
  3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button”
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  5 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  4 x M.2 sots (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Aura RGB
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
  1 x Thunderbolt
• Accessories: 2 x SATA 6Gb/s cables
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 backplate Q-Latch package
  1 x M.2 Q-Latch package
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x ROG Strix thank you card
  2 x M.2 Rubber Packages
  1 x M.2 backplate Rubber
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.3000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
