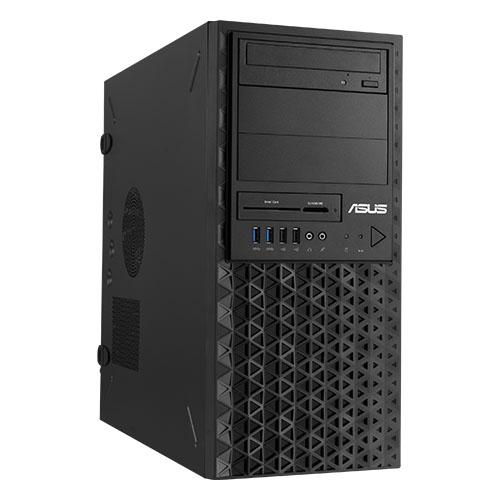

Asus (TS100-E11-PI4) Intel Xeon E Workload-Optimised Server, Intel C256, S 1200, 4x DDR4, 3x 3.25″, 1x 2.25″, 6 x SATA, 2x M.2, Dual GB LAN, 550W




  • Form Factor: Tower
  • CPU Socket: Intel 1200
  • #Hide#No. of CPU Sockets: Single Socket
  • Chipset: Intel C256
  • CPU Support: 1 x Socket LGA1200

    Intel Xeon processor E-23100 family(95W)
    Intel Pentium Processors

    Click here for CPU support list

  • Memory:Total Slots:
    4 (2-channel)

    Maximum up to 128GB UDIMM

    Memory Type:
    DDR4 3200 ECC UDIMM

    Memory Size:
    32GB, 16GB, 8GB”

  • Expansion Slots:Total: 4
    2 x PCI-E x4 slot, x8 Gen3 Link
    1 x PCI-E x8 slot, x8 Gen4 Link
    1 x PCI-E x16 slot, x16 Gen4 Link
    (Auto switch to x8 link if slot 4 is occupied ) “
  • Storage: 8 x SATA3 6Gb/s ports
    2 x M.2
  • HDD Bays: 3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays*
    1 x Internal 2.5″” drive bay
    1 x Optional internal 5.25” to 3.5”/2.5” drive cage
  • Auxiliary Storage FDD/CD/DVD: 2 x 5.25″” media bays
  • Networking: 2 x Intel I210AT
    1 x Management LAN
  • Graphics: Click here for GPU support list
  • Front I/O Ports: 2 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Headphone port
    1 x Microphone port
  • Rear I/O Ports: 2 x USB 3.2 Gen2 ports
    2 x USB 3.2 Gen1 ports
    1 x VGA port (support by ASMB10)
    1 x HDMI port from CPU (useable only with iGPU)
    2 x LAN Ports
    1 x PS/2 Keyboard/ Mouse Port
  • Switch/LED: 1 x Power Switch/LED
    1 x Reset Switch
    1 x HDD Access LED
  • Power Supply: 550W
  • OS Support: Click here for CPU support list
  • Management Solution: Bundle ASMB10-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)
  • Regulatory Compliance: BSMI
    FCC(Class B)
  • Dimensions/Weight: 423 x 190 x 435mm
  • Package Weight: 14.0000 kg
  • Additional Features: See Overview
  • Warranty: 3 Year Advanced Replacement
  • #Hide#Memory Slots: 4 Memory Slots
  • #Hide#Maximum Memory: 128 GB
  • #Hide#No. LAN Ports: 2
  • #Hide#Max LAN Speed: GB LAN

Out of stock

SKU: 90SF02N1-M001L0 Category:


Intel Xeon E workload-optimized server flexible storage expandability

  • Powered by the Intel Xeon E platform
  • 95W CPU and up to 128GB memory support (4 DIMMs)
  • High scalability with two PCIe Gen4 slots and two PCIe Gen3 slots
  • Flexible storage design with internal 5.25" to 3.5"/2.5" drive cage (Optional)
  • Dual Intel Gigabit Ethernet with teaming support
  • Supports the latest 10Gb/s USB 3.2 Gen2 onboard for high transfer speed
  • Complete server management with ASUS Control Center
  • Easily serviceable design
  • Design for SMB, Web/Print/File/Mail Server, entry storage applications
  • Onboard audio for workstation applications


Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.


PCIe 4.0 Ready
PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS TS100-E11-PI4 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.


Enhanced Security
ASUS TS100-E11-PI4 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all TS100-E11-PI4 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.


High-resolution HDMI monitoring
TS100-E11-PI4 features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet Bandwidth
Featuring dual onboard LAN ported by Intel I210-AT Ethernet Controller, TS100-E11-PI4 servers provide server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.


Server-management Solution
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Additional information

Weight 14 kg
