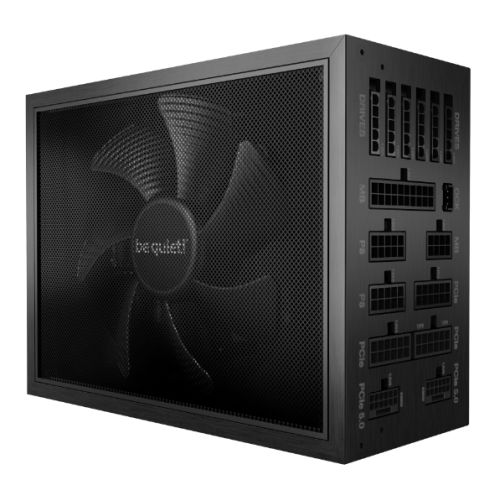

be quiet! Dark Power Pro 13 1300W PSU, 80 PLUS Titanium, ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors, 10-year manufacturer’s warranty

be quiet! Dark Power Pro 13 1300W PSU, 80 PLUS Titanium, ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors, 10-year manufacturer’s warranty

£351.99

Description

Specification

  • Form Factor: ATX
  • Series: Be Quiet! Straight Power 12
  • Wattage: 1200 W
  • Modular: Fully Modular
  • Compatibility: ATX 3.0
    EPS 12V v2.92
    PCIe 5.0
  • #Hide#Wattage Range: 1000 – 1250W
  • Connectors: 1 x P4+4 (CPU)
    1 x P8 (CPU)
    2 x 12VHPWR cables
    4 x PCI-e 6+2-pin (GPU)
    9 x SATA
    2 x PATA
  • Rail Design: One massive high-performance 12V-rail
  • AC Input: AC 100-240 V
  • Fan Type: 135mm Silent Wings Fan
  • Fan Bearing: Fluid / Hydraulic Bearing
  • Noise: dB(A) at 10% load: 9.4
    dB(A) at 20% load: 9.4
    dB(A) at 50% load: 9.8
    dB(A) at 100% load: 32.2
  • 80+ Certification: 80+ Platinum
  • Efficiency: “230V, 2% load: 65.0%
    230V, 10% load: 89%
    230V, 20% load: 93.1%
    230V, 50% load: 93.7%
    230V, 100% load: 92.4%”
  • MTBF: “>100,000 hours”
  • Protection: OTP (over temperature protection)
    OCP (over current protection)
    OPP (over power protection)
    SCP (short circuit protection)
    OVP (over Voltage protection)
    UVP (under Voltage protection)
    SIP (Surge & Inrush Protection)
  • Additional Features: See Overview / Videos
  • Package Contents: PSU
    Screws
    Cable ties
    User manual
  • Weight/Dimensions: 2.04 kg
    (LxWxH) 180 x 150 x 86 mm
  • Package Weight: 4.4000 kg
  • Warranty: 10 Years
  • #Hide#ATX 3.1/3.0: ATX 3.0

In stock

EAN: 4260052189368 SKU: BN331 Category:

Description

World Class efficiency and Quiet

Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS Platinum certification and virtually inaudible operation.

  • 80 PLUS Platinum efficiency (up to 93.7%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Virtually inaudible Silent Wings 135mm fan
  • Funnel-shaped fan opening on PSU case for high airflow intake
  • Full bridge LLC technology for unmatched signal stability
  • One massive high-performance 12V-rail
  • Japanese 105C capacitors ensure highest stability and reliability
  • Modular cable management for maximum convenience
  • 10-year manufacturer's warranty



80 PLUS Platinum Certification
Highly efficient operation
Straight Power 12 1200W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.



Future-Proof System

Fulfills all ATX 3.0 specifications
Straight Power 12 1200W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.



The New Standard Of Power

For massive transient loads
Straight Power 12 offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.



Silent Wings Fan

Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.



Flawless Cooling Concept

For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1200W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.



State-Of-The-Art Technologies
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1200W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.



Japanese 105C Capacitors
A testament to high quality
Only premium components are used in Straight Power 12 1200W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105C for stability, reliability, and a long operating life.



Convinience and Connectivity

Maximum utility

Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.

Additional information

Weight 6.85 kg
Brand

BEQUIET
MPN

BN331
Wattage

1300W
Size/Version

ATX 3.0
Modular

Fully
SATA Connections

16
Certification

Titanium
