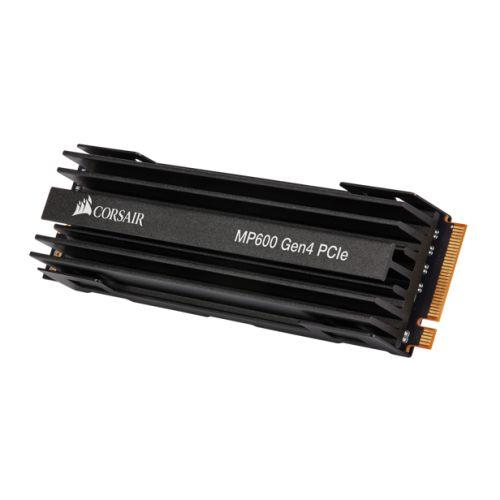

Corsair 1TB Force Series MP600 R2 M.2 NVMe SSD, M.2 2280, PCIe4, 3D TLC NAND, R/W 4950/4000 MB/s, 620K/550K IOPS

Description

Specification

• Series: Corsair Force Series MP600
• #Hide#Capacity Range: 960 – 1000 GB
• Capacity: 1 TB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 4.0 x4
• Controller: Phison PS5016-E16
• Read: “Up to 4,250MB/s”
• Write: “Up to 4,000MB/s”
• Max Random 4K R/W: 620K / 550K IOPS
• Power Consumption: Idle: 1.1W
  Active Read: 6.6W
  Active Write: 6.6W
  DEVSLP: PS4 < 1.65mW
• Weight/Dimensions: 34g
  80 x 23 x 15 mm
• Operating Temperatures: 0°C to +70°C
• Storage Temperatures: -40°C to +85°C
• Shock Resistance: “1,500 G”
• Vibration Operating: “20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G”
• MTBF: “1,700,000 hours”
• Total Bytes Written (TBW): “1,800TB”
• Additional Features: See Overview / Video
• Package Contents: Force MP600 Series M.2 SSD with heatsink
• Package Type: Retail
• Package Weight: 0.0720 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
