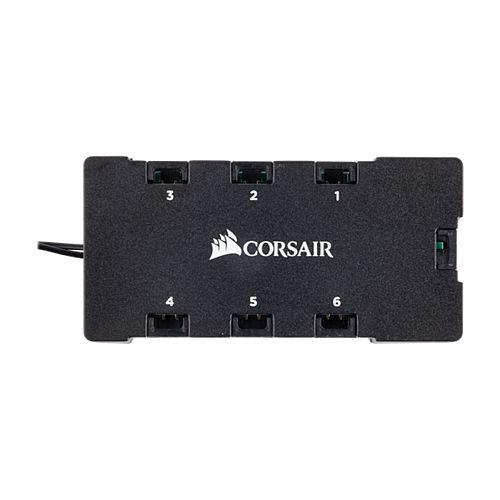

Corsair 6-port RGB LED Hub for Corsair RGB Fans, 6x 4-pin Connectors, Power via SATA




  • Type: RGB LED Fan Hub
  • Colour: Black
  • Connection(s): 6 x 4-pin (for fans)
    1 x SATA (for power connection)
    1 x 3-pin (for controller / remote control / JCORSAIR header)
  • Requirements: Compatibility:
    Corsair Commander Pro RGB LED
    HD fan series from Corsair
    LL fan series from Corsair
    ML fan series from Corsair
    Corsairs SP-RGB fan series
  • Dimensions: 70 x 50 x 38 mm (L x W x D)
  • Package Type: Retail
  • Package Weight: 0.0480 kg
  • Warranty: 2 Years

In stock

SKU: CFHUB-CORRGB Category: Tag:

RGB Hubs Done Right

The Corsair RGB Fan Hub is, as the name implies, specialized in the control of the RGB illumination of the fans of the manufacturer Corsair. In each case one of a total of six 4-pin connections can be plugged in, for example, the fans from Corsair's HD, LL, ML or SP-RGB series. The hub and the RGB LEDs are powered by an integrated SATA connector .
A 3-pin slot on the opposite side connects the hub to Corsair's Commander Pro RGB LED Controller (LULS-271). Alternatively, the optional wired remote control for Corsair's RGB fans can be connected to the slot, or the Corsair RGB Fan Hub can be connected to one via an optional cableJCORSAIR header of an appropriately equipped motherboard. On the back is an M3 strip that allows the hub to be attached anywhere.
Note: Remote control and cables for connecting to the Corsair Commander Pro RGB LED Controller or to the JCORSAIR header of a motherboard are not included with the package.
