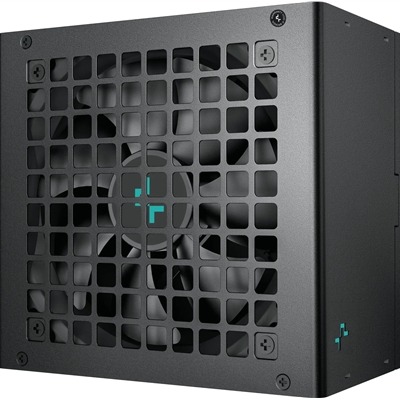

DeepCool PL650D 650W 80 Plus Bronze Power Supply with 120mm Hydro-Bearing Fan, ATX3.1 & PCIe 5.0 Support, Non-Modular Design PSU

Description

The DeepCool PL650D 80 Plus Bronze Power Supply is engineered to perfection, delivering stable and reliable power for mid-range to high-performance desktop systems. This power supply unit (PSU) is designed in compliance with INTEL’s ATX3.1 standard and features a native PCIe 5.0 power connector. With its streamline hydro-bearing fan and 80 Plus Bronze certification, the PL650D ensures optimal cooling, quiet operation, and high energy efficiency. Built with high-grade electrolytic capacitors and a well-thought-out dual-transistor forward topology, it guarantees top-notch durability and performance for years to come.

Full Specification
Model:
PL650D

Colour:
Black

Power Capacity:
650W

Dimensions:
150x140x86mm (WxLxH)

Weight:
1.75kg (3.86lb)

Material:
High-quality parts including electrolytic capacitors

Efficiency Certification:
80Plus Bronze (=85% efficiency under typical loads at 50% loading)

Cooling:
120mm hydro-bearing fan

Modular Design:
Non-modular

Connectors:
Main Power Connector: (20+4)Pin x 1
CPU: (4+4)Pin x 2
PCI-E: (6+2)Pin x 3
Sata: x3
4Pin Peripheral: x1
12VHPWR (16Pin): x1

Certifications and Safety Features:
OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO

Type:
ATX12V V3.1

Fan Bearing:
HYB (Hydro Bearing)

Topology:
Active PFC + DC to DC

Power Good Signal:
100-150ms

Hold Up Time:
=16ms at Full Load

Operating Temperature:
0 – 40 °C

Compliance:
ATX v3.1, EPS 2.92

Warranty:
5 years
