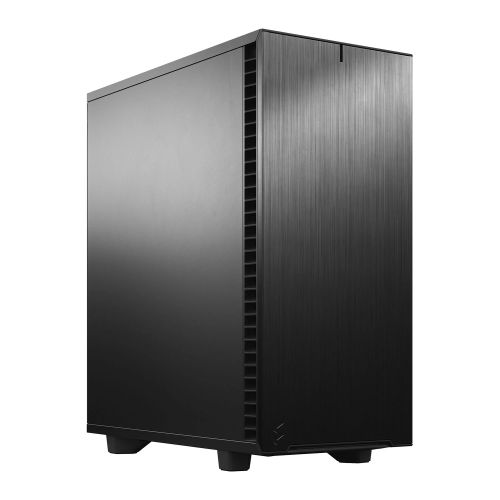

Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C

Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C

£122.99

Description

Specification

  • Form Factor: E-ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “E-ATX (max 285 mm), ATX, Micro ATX, Mini ITX”
  • #Hide#Window(s): No
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    2 x USB 2.0
    Audio I/O
    Power button
    Reset button
  • #Hide#5.25 Bay: Yes (5.25 Bay)
  • Drive Bays: “3.5””/2.5″” Universal brackets: 6 included, 14 positions total
    Dedicated 2.5″” brackets: 2 trays included, 4 positions total
    5.25” mounts: 1″
  • Expansion Slots: 7 + 2 Expansion slots
  • Cooling System: Included
    Front: 2 x Dynamic X2 GP-14 140mm fans
    Rear: 1 x Dynamic X2 GP-14 140mm fan

    Fan Mounts
    Front: 3 x 120 / 140 mm
    Top: 3 x 120 / 140 mm
    Rear: 1 x 120 / 140 mm
    Bottom: 2 x 120 / 140 mm

  • .:
    Water Cooling options:
    Front: Up to 360 / 280 mm radiator
    Top: Up to 360 / 420 mm radiator
    Rear: 120 mm radiator
    Bottom: Up to 240 / 280 mm radiator
  • Colour: Grey
  • Material: Left side panel: Industrial sound-damped steel
    Right side panel: Industrial sound-damped steel
  • Compatibility: GFX Card:
    Storage layout: 315 mm
    Open layout: 491 mm (467 mm w/ front fan)
  • Weight/Dimensions: 13.45 kg
    (LxWxH) 547 x 240 x 475 mm
    w/o feet/protrusions/screws: 533 x 240 x 451 mm
  • Additional Features: See Overview / Video
  • Accessories: Accessory box
    User manual
    Ventilated top
    4 x HDD/SSD trays (for a total of 6)
  • Package Weight: 16.0500 kg
  • Warranty: 2 Years

In stock

EAN: 7340172702160 SKU: FD-C-DEF7C-01 Category:

Description

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.


  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
  • Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
  • The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation
  • New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing
  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
  • Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Redesigned HDD cage for easier installation and improved transportation security
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board




Open and interchangeable
Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance

Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

  • Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Open layout for massive headroom
You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

  • Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

Superlative storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

  • 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
  • 2 dedicated SSD brackets included with 4 positions total
  • Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
  • Sturdy new HDD cage design with vibration damped trays



Additional information

Weight 11.3 kg
Brand

FRACTAL
MPN

FD-C-DEF7C-01
