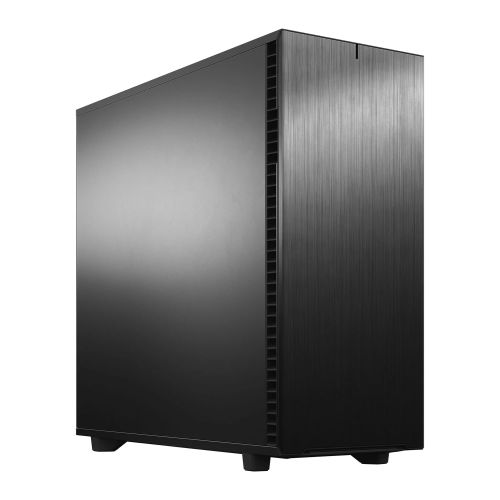

Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C

Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C

£225.99

Description

Specification

  • Form Factor: E-ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB”
  • #Hide#Window(s): No
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    2 x USB 2.0
    Audio I/O
    Power button
    Reset button
  • #Hide#5.25 Bay: Yes (5.25 Bay)
  • Drive Bays: 6 + 2 x 3.5″”/2.5″” – 18 positions total
    2 x 2.5″” – 5 positions total
    2 x 5.25″”
  • Expansion Slots: 9 + 3 Expansion slots
  • Cooling System: Included
    Front: 2 x Dynamic X2 GP-14 140mm fans
    Rear: 1 x Dynamic X2 GP-14 140mm fan

    Fan Mounts
    Front: 4 x 120 / 3 x 140 mm
    Top: 4 x 120 / 3 x 140 mm
    Rear: 1 x 120 / 140 mm
    Bottom: 2 x 120 / 140 mm

  • .:
    Water Cooling options:
    Front: Up to 480 / 420 mm radiator
    Top: Up to 480 / 420 mm radiator
    Rear: 120 mm radiator
    Bottom: Up to 240 / 280 mm radiator
  • Colour: Black
  • Material: Left side panel: Industrial sound-damped steel
    Right side panel Industrial sound-damped steel
  • Compatibility: GFX Card:
    Storage layout: 359 mm
    Open layout: 549 mm (524 mm w/ front fan)

    Max CPU Cooler:
    185 mm

    PSU:
    250 mm (both HDD cages installed)

  • Weight/Dimensions: 16.53 kg
    (LxWxH) 604 x 240 x 566 mm
    w/o feet/protrusions/screws: 590 x 240 x 548 mm
  • Additional Features: See Overview / Video
  • Accessories: Accessory box
    User manual
    Ventilated top panel
    ODD bracket
    ODD bay cover
    2 x HDD/SSD trays
  • Package Weight: 18.4000 kg
  • Warranty: 2 Years

In stock

EAN: 7340172702047 SKU: FD-C-DEF7X-01 Category:

Description

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.


  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Sturdy new HDD cage design with vibration damped trays
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover
  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board



Plenty of room for massive builds

  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Ventilated PSU shroud with two-part removable cover
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Superlative storage possibilities

  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
  • Sturdy new HDD cage design with vibration damped trays
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Airflow and cooling

  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering









Additional information

Weight 18.4 kg
Brand

FRACTAL
MPN

FD-C-DEF7X-01
