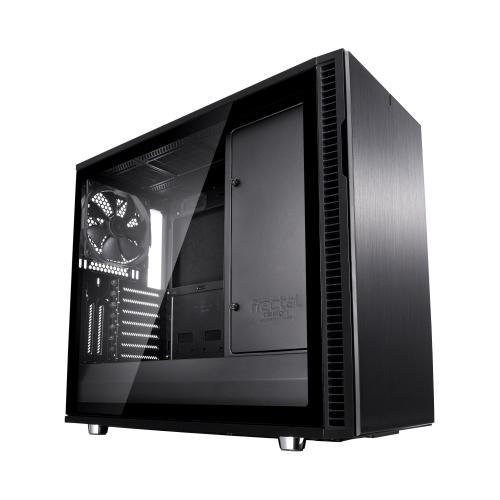

Fractal Design Define R6 (Black TG) Gaming Case w/ Clear Glass Window, E-ATX, Modular Design, 3 Fans, Fan Hub, Sound Dampening

Fractal Design Define R6 (Black TG) Gaming Case w/ Clear Glass Window, E-ATX, Modular Design, 3 Fans, Fan Hub, Sound Dampening

£152.99

Description

Specification

  • Form Factor: ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “E-ATX, ATX, Micro ATX, Mini ITX”
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 2 x USB 3.0
    2 x USB 2.0
  • #Hide#5.25 Bay: Yes (5.25 Bay)
  • Drive Bays: 6 x 3.5″”/2.5″”
    2 x 2.5″”
    1 x 5.25″”
  • Expansion Slots: 7 + 2 vertical Expansion slots
  • Cooling System: Included
    Front: 2 x Dynamic X2 GP-14 140mm fans
    Rear: 1 x Dynamic X2 GP-14 140mm fan

    Fan Mounts
    Front: 3 x 120 / 2 x 140 mm
    Top: 3 x 120 / 2 x 140 mm
    Rear: 1 x 120 / 140 mm
    Bottom: 2 x 120 / 140 mm

  • .:
    Water Cooling options:
    Front: Up to 280 / 360 mm radiator
    Top: Up to 360 / 420 mm
    Rear: 120 mm radiator
    Bottom: Up to 240 / 280 mm radiator
  • Colour: Black
  • Material: Left side panel: Tempered Glass
    Right side panel Industrial sound-damped steel
  • Compatability: GFX Card length:
    Front fan mounted: 440 mm
    Standard layout: Max width 155 mm for cards longer than 300 mm

    Max CPU Cooler:
    185 mm

    PSU:
    300 mm

  • Weight/Dimensions: 12.4 kg
    (LxWxH) 543 x 233 x 465 mm
    w/o feet/protrusions/screws: 535 x 233 x 448 mm
  • Additional Features: See Overview / Video
  • Accessories: User manual
    Accessory box
  • Package Weight: 14.1000 kg
  • Warranty: 2 Years

In stock

SKU: FD-CA-DEF-R6-BK-TG Category:
FRACTAL

Description

Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – a sizeable step forward from preceding models of the world-renowned Define Series.

  • Optimized for silence with high-density industrial dampening on side, top and front panels
  • Reversible front door with anodized aluminum cover and dual mounting system for adaptability with elegance
  • Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
  • Nexus+ Smart Hub offers superior fan control of six additional case fans and three extra PWM devices via your motherboard.
  • Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed helping ensure superior airflow via two intake fans and a single exhaust.
  • Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and up to 280 mm in the base
  • Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior
  • Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel
  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
  • Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
  • Vertical 2.5 slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIE x16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility and secure fastening (sold separately).
  • Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
  • Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud
  • Compatible with Fractal Design Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit for ultra-fast file transfers and fast charging (sold separately, requires a compatible motherboard)





Limited only by your imagination

Sound-dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.

The latest and largest step in the legacy of the world-renowned Define Series
Sound-dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.

The spacious and fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub and support for radiators up to 420 mm, making it the perfect platform for building your dream water loop. Improved third generation ModuVent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup.



Industrial dampening
Optimized for silent computing with high-density industrial dampening on side, top and front panels
Reversible front door
Reversible front door with anodized aluminum cover and dual mounting system for adaptability with elegance
Nexus Fan Hub

Nexus+ Smart Hub offers superior fan control of six additional case fans and three extra PWM devices via your motherboard

Excellent airflow and cooling support
Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
  • Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed, ensuring optimal airflow via two intake fans and a single exhaust
  • Nexus+ Smart Hub offers superior fan control of six additional case fans and three PWM devices via your motherboard
  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience



Modularity and open case layout
If you can dream it, you can build it – the focus on modularity and the possibilities offered by an open case layout means you’re only limited by your imagination.
Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
  • Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
  • Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
  • Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud



Extensive water cooling support
Room for up to a 420 mm radiator in the top, 360 mm in the front, and 280 mm in the base – making it the perfect platform for building your dream water loop.
  • Top: 420 mm
  • Front: 360 mm
  • Base: 280 mm
Showcase your hardware
Vertical 2.5 slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIe x16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility and secure fastening (sold separately)



Upgrade to type-C
Compatible with Fractal Design Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit for ultra-fast file transfers and fast charging (sold separately, compatible motherboard required)



Hide the mess
Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior
The next generation
Third generation ModuVent™ technology lets you choose between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel
