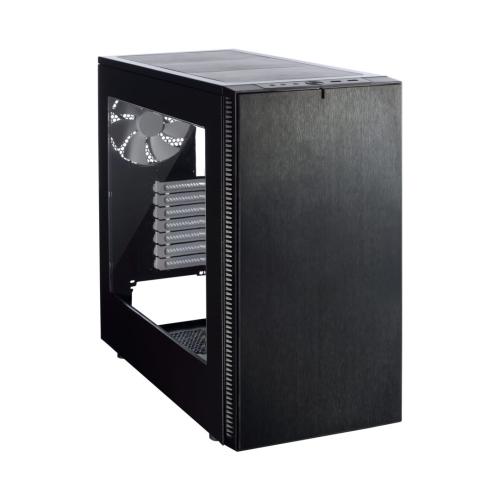

Fractal Design Define S (Black Window) Quiet Gaming Case w/ Clear Window, ATX, 2 Fans, ModuVent Technology, Extensive Water Cooling Support

Fractal Design Define S (Black Window) Quiet Gaming Case w/ Clear Window, ATX, 2 Fans, ModuVent Technology, Extensive Water Cooling Support

£94.99

Description

Specification

  • Form Factor: ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “ATX, Micro ATX, Mini ITX”
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 2 x USB 3.0
    Audio in/out
    Power button with LED (blue)
    HDD activity LED (blue)
    Reset button
  • Drive Bays: 3 x 3.5″” HDD/2.5″” SSD positions
    2 x 2.5″” dedicated SSD unit positions (SSDs up to 17mm thick)
  • Expansion Slots: 7 Expansion slots
  • Cooling System: Included
    Front: 1 x Dynamic GP-14 140mm fan
    Rear: 1 x Dynamic GP-14 140mm fan

    Fan Mounts
    Front: 3 x 120 / 140 mm
    Top: 3 x 120 / 140 mm or 1x 180mm w/ 165mm hole spacing
    Rear: 1 x 120 mm / 140 mm
    Bottom: 1 x 120 mm / 140 mm
    Side: 1 x 120 mm / 140 mm

  • .: ”
    Water Cooling options:
    Front: Up to 360mm radiator
    Top: Up to 420mm radiator*
    Rear: Up to 140mm radiator
    Bttom: 120 mm radiator (Max PSU length of 165mm when using bottom radiator)

    *A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140mm top radiators“

  • Colour: Black
  • Material: Left side panel: Clear transparent window
    Right side panel: Industrial sound-dampened steel
  • Compatability: “ GFX Card:
    Max 180/170 mm with a bottom 120/140mm fan installed or 300mm when not using any bottom fan

    Max CPU Cooler:
    182 mm

    PSU:
    425 mm with front fans installed, without compromising HDD capacity or 450mm without front fans installed directly in line with the GPU”

  • Weight/Dimensions: 8.5 kg
    (WxHxD) 233 x 451 x 520 mm
    With feet/screws/protrusions: 233 x 465 x 533 mm
  • Additional Features: See Overview / Video
  • Accessories: User manual
    Accessory box
  • Package Weight: 9.7500 kg
  • Warranty: 2 Years

Out of stock

SKU: FD-CA-DEF-S-BK-W Category:
FRACTAL

Description

The Fractal Design Define S borrowed the appearance, sound dampening technology, and support for a wide variety of components from the widely popular Define Series, while introducing a new, innovative internal layout

  • Optimally designed for silent computing, while not compromising on airflow and cooling capabilities
  • Innovative internal layout, providing a perfectly straight airflow path to the CPU heatsink for air cooling set ups or extensive radiator mounting possibilities for water cooling set ups
  • Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front
  • Including smart reservoir brackets; featuring drill-free reservoir mounting on the front of the motherboard tray and predrilled pump mounting holes on the bottom panel
  • Equipped with ModuVent™ fan slot covers providing the option of additional cooling or maximum sound absorption
  • Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels
  • Maintaining a dust-free interior with dust filters that cover the front and bottom air intakes
  • Introducing newly designed hard drive trays placed vertically behind the front partition of the motherboard tray; Three sturdy steel trays with vibration-dampening grommets allowing for installation of one 3.5” or 2.5” drive on each tray, without disrupting the airflow or interfering with the radiator mounting possibilities
  • An additional 2 dedicated steel SSD trays cleanly placed behind the motherboard tray
  • Long motherboard tray extending to the front panel contributing to an extremely clean build, hiding both hard drives and cables
The Fractal Design Define S lends the appearance, sound dampening technology, and support for a wide variety of components from the widely popular Define Series, while introducing a new, innovative internal layout. The Define S case is packed
with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid
cooling support, presented in a stunning Scandinavian inspired construction.
The modernized internal layout of the Define S omits the optical drive bays, instead focusing on a clear straight airflow path
and uncompromising water cooling support.

The Define S case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, multiple ModuVent™ fan vent covers and finely tuned Dynamic Series fans.



Extensive cooling support
Optimally designed for silent computing without compromising on airflow and cooling capabilities
  • Innovative internal layout, providing a straight airflow path to the CPU heat sink for air cooling set ups or extensive radiator mounting possibilities for water cooling setups
  • Extensive water cooling support for a case of this size; housing radiators up to 420 mm in the top and 360 mm in the front
  • Including smart reservoir brackets; featuring drill-free reservoir mounting on the front of the motherboard tray and pre-drilled pump mounting holes on the bottom panel
  • Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels
  • Equipped with ModuVent™ fan slot covers providing the option of additional cooling or maximum sound absorption



Smart open layout and storage functionality
  • Maintaining a dust-free interior with dust filters that cover the front and bottom air intakes
  • An additional 2 dedicated steel SSD trays cleanly placed behind the motherboard tray
  • Long motherboard tray extending to the front panel contributing to an extremely clean build, hiding both hard drives and cables
  • Introducing newly designed hard drive trays placed vertically behind the front partition of the motherboard tray; Three sturdy steel trays with vibration-dampening grommets allowing for installation of one 3.5″ or 2.5″ drive on each tray, without disrupting the airflow or interfering with the radiator mounting possibilities
