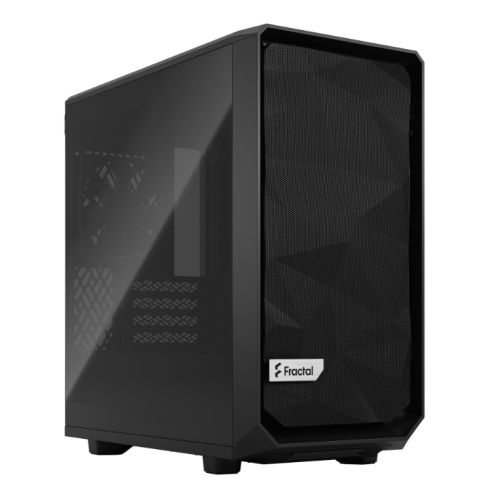

Fractal Design Meshify 2 Mini (Black TG) Gaming Case w/ Dark Glass Window, Micro ATX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support

Fractal Design Meshify 2 Mini (Black TG) Gaming Case w/ Dark Glass Window, Micro ATX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support

£121.99

Description

Specification

  • Form Factor: Micro ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “Micro ATX, Mini ITX, DTX, Mini DTX “
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.1 Gen2 Type-C
    2 x USB 3.0
    Audio I/O
    Power button
    Reset button
  • Drive Bays: 3.5″”/2.5″” drive mounts: 2 (included)
    Dedicated 2.5″” drive mounts: (2 included)*

    *max 8 mm drive height for mounts behind motherboard plate

  • Expansion Slots: 4 Expansion slots
  • Cooling System: Included
    Front: 1 x Dynamic X2 GP-14 140mm fan
    Rear: 1 x Dynamic X2 GP-12 120mm fan

    Fan Mounts
    Front: 3 x 120 / 2 x 140 mm
    Top: 2 x 120 / 140 mm
    Rear: 1 x 120 mm
    Bottom: 1 x 120 mm (requires removal of HDD cage)

  • .:
    Radiator options:
    Front: Up to 240/280 mm
    Top: Up to 240 mm
    Rear: 120 mm
    Bottom: 120 mm (without HDD Cage)
  • Colour: Black
  • Material: Left side panel: Tempered glass
    Right side panel: Steel
  • Compatibility: GFX Card length:
    331 mm
    306 mm with front fan

    Max CPU Cooler:
    167 mm

    Max PSU length:
    165 mm recommended with HDD cage
    200 mm without HDD cage

  • Weight/Dimensions: 6.62 kg
    (LxWxH) 396 x 205 x 406 mm
  • Additional Features: See Overview
  • Accessories: User manual
    Accessory box
  • Package Weight: 8.0000 kg
  • Warranty: 2 Years

In stock

EAN: 7340172702641 SKU: FD-C-MES2M-01 Category:

Description

A classic evolved.



The Meshify 2 Mini offers mATX aficionados an excellent combination of airflow can flexibility for their favorite form-factor. The bold exterior design with asymmetric angular mesh front is complemented by a flush TG panel and a fully removable top. It is a textbook example of what you should expect from a modern mATX case when it comes to flexibility and ease of use.

  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
  • Open interior layout creates a smooth airflow path from front intake to rear exhaust
  • Room for GPUs up to 306 mm long including front fans with 331 mm total space
  • Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
  • Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
  • Double layered front filter with detachable nylon for increased airflow
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
  • Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
  • Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
  • Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included)
  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
  • Bridgeless PCI expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
  • Integrated cable guides with velcro straps further simplify cable management behind the board



Additional information

Weight 8 kg
Brand

FRACTAL
MPN

FD-C-MES2M-01
