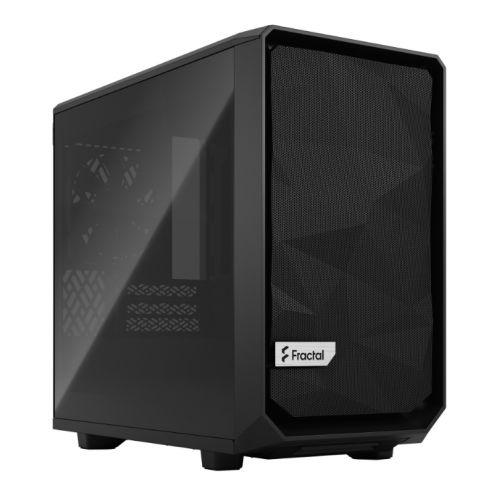

Fractal Design Meshify 2 Nano (Black TG) Gaming Case w/ Dark Glass Window, Mini ITX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support




  • Form Factor: Mini ITX
  • #Hide#Small Form Factor: Yes (SFF)
  • Power Supply Wattage: No PSU
  • Motherboard Support: “Mini ITX, Mini DTX”
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    Audio I/O
    Power button
    Reset button
  • Drive Bays: 3.5″”/2.5″” drive mounts: 1 (included)
    Dedicated 2.5″” drive mounts: 3 (2 included)
  • Expansion Slots: 2 Expansion slots
  • Cooling System: Included
    Front: 1 x Dynamic X2 GP-14 140mm fan
    Rear: 1 x Dynamic X2 GP-12 120mm fan

    Fan Mounts
    Front: 2 x 120 / 2 x 140 mm
    Top: 2 x 120 / 1 x 140 mm slim (max 15mm thick)
    Rear: 1 x 120 mm
    Bottom: N/A

  • .:
    Radiator options:
    Front: Up to 280 mm*
    Top: Up to 240 mm (max 38mm RAM/CPU pump block with 121mm wide radiator)
    Rear: 120 mm
    Bottom: N/A

    *316 mm max height, 146 mm max width, 280 recommended in “”push”” configuration for easier fit

  • Colour: Black
  • Material: Left side panel: Tempered glass
    Right side panel: Steel
  • Compatability: GFX Card length:
    331 mm
    306 mm with front fan

    Max CPU Cooler:
    167 mm

    Max PSU length:
    165 mm recommended
    (200 mm without HDD-tray and air guides)

  • Weight/Dimensions: 5.9 kg
    (LxWxH) 396 x 205 x 361 mm
    w/o feet/protrusions/screws: 384 x 205 x 345 mm
  • Additional Features: See Overview
  • Accessories: User manual
    Accessory box
  • Package Weight: 7.1000 kg
  • Warranty: 2 Years

In stock

SKU: CAI-FRME2NADTG Category: Tag:


A classic evolved.

The Meshify 2 Nano offers small form-factor enthusiasts plenty of scope for creative builds through excellent radiator support for its size while accommodating a GPU of up to 331 mm. The flexible design and angular asymmetry are complemented by a flush TG panel and a fully removable top. It is a textbook example of what you should expect from a modern small form-factor case.
  • Compact yet spacious interior accommodates all Mini ITX motherboards
  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Open interior layout creates a smooth airflow path from front intake to rear exhaust
  • Room for GPUs up to 306 mm long including front fans with 331 mm total space
  • Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
  • Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
  • Double layered front filter with detachable nylon for increased airflow
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
  • Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Flexible storage option supporting one 3.5” drive and three 2.5’’ drives
  • Install up to 5x 120 mm or 3x 140 mm fans
  • Pre-installed Dynamic X2 1x 120 mm and 1x 140 mm fans ensure smooth airflow with minimal noise
  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
  • Bridgeless PCI expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part Modular Air Duct for increased GPU airflow and radiator support
  • Integrated cable guides with velcro straps further simplify cable management behind the board
