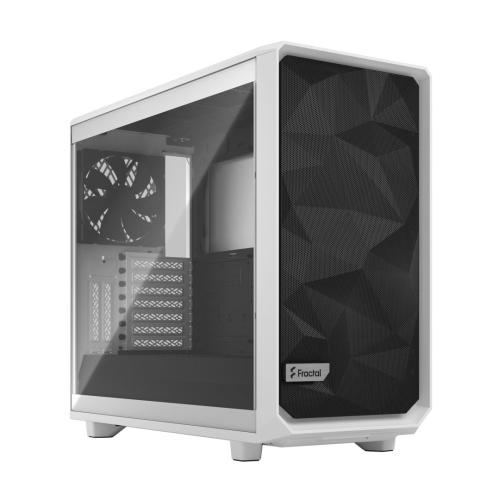

Fractal Design Meshify 2 (White TG) Gaming Case w/ Clear Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C, White

Fractal Design Meshify 2 (White TG) Gaming Case w/ Clear Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C, White

£131.99

Description

Specification

  • Form Factor: E-ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “E-ATX (max 285mm), ATX, Micro ATX, Mini ITX”
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    Audio I/O
    Power button
    Reset button
  • Drive Bays: 6 x 3.5″”/2.5″” – 14 positions total + 1 Multibracket
    2 x 2.5″” – 4 positions total
  • Expansion Slots: 7 + 2 Expansion slots
  • Cooling System: Included
    Front: 2 x Dynamic X2 GP-14 140mm fans
    Rear: 1 x Dynamic X2 GP-14 140mm fan

    Fan Mounts
    Front: 3 x 120 / 140 mm
    Top: 3 x 120 / 140 mm
    Rear: 1 x 120 / 140 mm
    Bottom: 2 x 120 / 140 mm

  • .:
    Water Cooling options:
    Front: Up to 360 / 280 mm radiator
    Top: Up to 360 / 420 mm
    Rear: 120 mm radiator
    Bottom: Up to 240 / 280 mm radiator
  • Colour: White
  • Material: Left side panel: Tempered Glass
    Right side panel: Steel
  • Compatibility: GFX Card:
    Storage layout: 315 mm
    Open layout: 491 mm (467 mm w/ front fan)

    Max CPU Cooler:
    185 mm

    PSU:
    250 mm (with HDD cage installed)

  • Weight/Dimensions: 10.1 kg
    (LxWxH) 542 x 240 x 474 mm
    w/o feet/protrusions/screws: 541 x 240 x 454 mm
  • Additional Features: See Overview / Video
  • Accessories: User manual
    Large accessory box – HDD trays
    Small accessory box
  • Package Weight: 12.3500 kg
  • Warranty: 2 Years

In stock

EAN: 7340172702467 SKU: FD-C-MES2A-05 Category:

Description

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.


  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
  • Includes 6 HDD/SSD trays, 2 SSD brackets, and 12 universal Multibrackets for mounting up to 10 drives
  • Expandable to 14 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 21 drives in Storage Layout
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
  • Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
  • Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Detachable front filter

  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans

Superlative storage

  • Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
  • Transformable interior design utilizing a movable wall for enhancing custom builds
  • The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible

  • Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
  • Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
  • Easily holds large motherboards up to and including 285 mm E-ATX





Additional information

Weight 12.35 kg
Brand

FRACTAL
MPN

FD-C-MES2A-05
