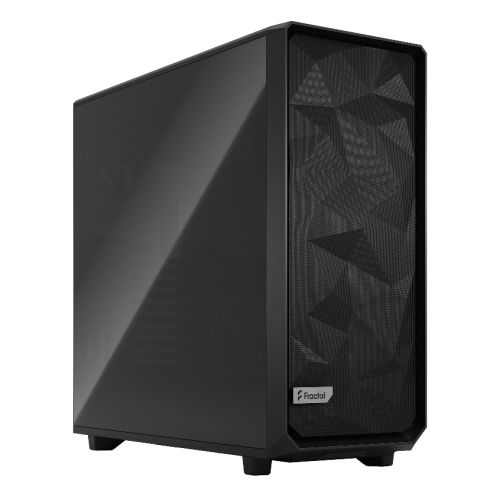

Fractal Design Meshify 2 XL (Black TG Dark) Gaming Case w/ Dark Tint Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detach. Front Filter, USB-C
£203.99
Description
Specification
- Form Factor: E-ATX
- #Hide#Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: “EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB”
- #Hide#Window(s): Yes (Window)
- Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Power button
Reset button - Drive Bays: 6 x 3.5″”/2.5″” – 18 positions total + 2 Multibrackets
2 x 2.5″” – 5 positions total - Expansion Slots: 9 + 3 Expansion slots
- Cooling System: Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fanFan Mounts
Front: 4 x 120 / 3 x 140 mm
Top: 4 x 120 / 3 x 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm - .:
Water Cooling options:
Front: Up to 480 / 420 mm radiator
Top: Up to 480 / 420 mm radiator
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator - Colour: Black
- Material: Left side panel: Tempered glass dark tint
Right side panel: Steel - Compatibility: GFX Card:
Storage layout: 359 mm
Open layout: 549 mm (524 mm w/ front fan)Max CPU Cooler:
185 mmPSU:
250 mm (both HDD cages installed) - Weight/Dimensions: 14.1 kg
(LxWxH) 600 x 240 x 566 mm
w/o feet/protrusions/screws: 588 x 240 x 547 mm - Additional Features: See Overview / Video
- Accessories: Accessory box
User Manual
Screw Box - Package Weight: 15.7500 kg
- Warranty: 2 Years
Out of stock
Description
Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
- Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
- Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
- Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
- New chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
- Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front access
- Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
- Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount
- Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
- Tool-less, top-latching panels allow quick access while preventing accidental drops
- Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Detachable front filter
- The nylon filter is easily removed from the hinged mesh panel for increased airflow
- Tether-free bezel for easier access to front fan mounts
- Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)
Superlative storage
- Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
- The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
- Tool-less, top-latching panels allow quick access while preventing accidental drops
Flexible dual-layout design
- Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
- Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB
Additional information
Weight | 15.75 kg |
---|---|
Brand | FRACTAL |
MPN | FD-C-MES2X-01 |
