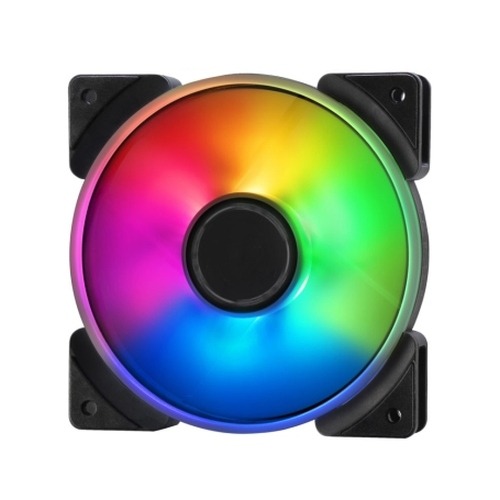

Fractal Design Prisma AL-12/PWM 12cm ARGB Case Fan, 7 Blades, Long Life Sleeve Bearing, 500-2000 RPM, Black

Fractal Design Prisma AL-12/PWM 12cm ARGB Case Fan, 7 Blades, Long Life Sleeve Bearing, 500-2000 RPM, Black

£21.99

Description

Specification

  • Type: 12cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Installation: Screws
  • #Hide#LED Lighting: Yes
  • Colour: Black/White
  • LED Lighting: 6 individually addressable hub-mounted RGB LEDs
    Chainable RGB cables
    Connector: 3-pin 5V addressable RGB
    Adjust R1 RGB controller (sold separately) enables physical control of colours and effects
  • Weight: 169g
  • Fan Dimensions: 120 x 120 x 25 mm
  • Rotation Speed: 500 – 2000 RPM
  • Fan Bearing: Long Life Sleeve
  • Air Flow: 85.71 CFM
  • Noise level: 32.7 dB(A)
    Low PWM: 14.8 dB(A)
  • Power: Fan input power: 2.16 W
    Fan max input current: 0.18 A
    Fan input voltage: 12 V
    Fan starting voltage: 7 V
    LED input power: 1.50 W
    LED max input current: 0.30 A
    LED input voltage: 5 V
  • Additional Features: See Overview
  • MTBF: “100,000 hours”
  • Package Contents: 1 x Prisma AL-12 PWM 120 mm fan
    4 x fan screws
  • Package Type: Retail
  • Package Weight: 0.2150 kg
  • Warranty: 3 Years

In stock

EAN: 7340172701590 SKU: FD-FAN-PRI-AL12-PWM Category:

Description

Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.


  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring produce an exceptionally uniform glow
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
  • Integrated vibration-damping corners made from high-quality synthetic rubber
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Chainable RGB cables simplify wiring and make the most of available connections
  • PWM control with a wide speed range ideal for CPU heatsinks and radiators
  • Black sleeved power cables offer an extra touch of style
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
  • 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets
  • Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome
  • Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.




Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Let your system shine

Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
Six individually addressable hub-mounted RGB LEDs

  • Specially designed fan blades and outer ring produce an exceptionally uniform glow
  • Chainable RGB cables simplify wiring and make the most of available connections
  • Black sleeved power cables offer an extra touch of style
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects

Aerodynamic performance

  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Integrated vibration-damping corners made from high-quality synthetic rubber
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan




Additional information

Weight 0.215 kg
Brand

FRACTAL
MPN

FD-FAN-PRI-AL12-PWM
