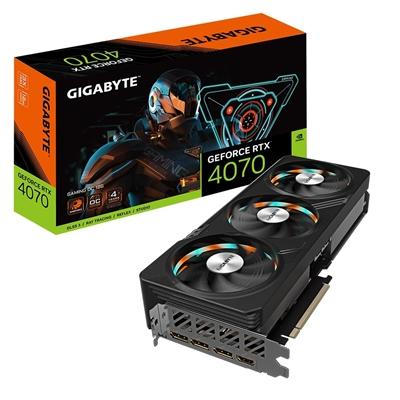

Gigabyte Nvidia GeForce RTX 4070 GAMING OC 12GB Graphics Card

£702.99

  • Chipset Manufacturer: Nvidia
  • Chipset Series: RTX
  • Chipset: RTX4070
  • Form Factor: 2x ATX
  • Memory: 12GB
  • Fans: 3
  • RGB: No

Out of stock

SKU: GV-N4070GAMING OC-12GD Categories: ,

Description

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE – PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX? 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
4 Years Warranty (Online registration required)

CORE CLOCK
2640 MHz (Reference card : 2610 MHz)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

Specifications

Graphics Processing
GeForce RTX 4070

Core Clock
2565 MHz (Reference card: 2475 MHz)

CUDA Cores
5888

Memory Clock
21 Gbps

Memory Size
12 GB

Memory Type
GDDR6X

Memory Bus
192 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=300 W=13 H=57.6 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
700W

Power Connectors
16 pin x 1

Output
DisplayPort 1.4 x 3
HDMI 2.1 x 1

Accessories
1. Quick guide
2. Warranty registration
3. One 16-pin to two 8-pin power adaptor

Additional information

Brand

Gigabyte

MPN

GV-N4070GAMING OC-12GD

Chipset Manufacturer

Nvidia

Chipset Series

RTX

Chipset

RTX4070

Form Factor

2x ATX

Memory

12GB

Fans

3

No

RGB
