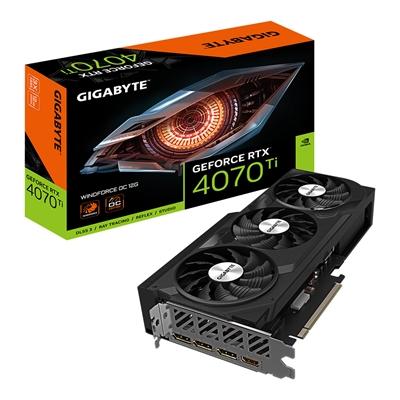

Gigabyte Nvidia GeForce RTX 4070Ti WINDFORCE OC 12GB Graphics Card

Description

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Graphics Processing
GeForce RTX 4070 Ti

Core Clock
2625 MHz (Reference card : 2610 MHz)

CUDA Cores
7680

Memory Clock
21 Gbps

Memory Size
12 GB

Memory Type
GDDR6X

Memory Bus
192 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=261 W=126 H=50 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
750W

Power Connectors
16 pin *1

Output
DisplayPort 1.4a *3
HDMI 2.1a *1

Accessories
Quick guide
One 16-pin to two 8-pin power adaptor
