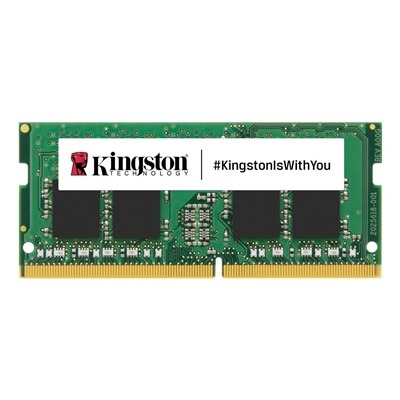

Kingston 16GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

Kingston 16GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

£37.99

Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR4 SODIMM
  • Size: 1 x 16GB
  • #Hide#Individual Module Size: 16GB
  • Speed: 3200 MHz
  • Compliance: PC4-25600
  • Pins: 260-pin
  • CAS Latency: CL22
  • Data Integrity Check: Non-ECC
  • Voltage: 1.2V Typical
  • Additional Information: See Overview
  • Package Type: Retail
  • Package Weight: 0.0225 kg
  • Warranty: Lifetime

In stock

EAN: 740617310894 SKU: KVR32S22S8/16 Category:

Description



16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 260-Pin SODIMM

ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.


  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18" (30.00mm)
  • RoHS Compliant and Halogen-Free

Additional information

Weight 0.0225 kg
Brand

Kingston
MPN

KVR32S22S8/16
