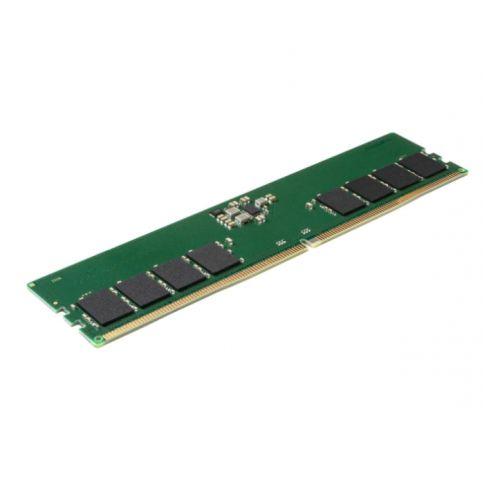

Kingston, 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, DIMM Memory

Kingston, 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, DIMM Memory

£55.99

Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR5
  • Size: 1 x 16GB
  • #Hide#Individual Module Size: 16GB
  • #Hide#Total Capacity: 16GB Total
  • Speed: 4800 MHz
  • Compliance: PC5-38400
  • Pins: 288-pin
  • CAS Latency: CL40
  • Data Integrity Check: ECC
  • Voltage: 1.1V
  • Timings: 40-39-39
  • Heatsink: No
  • #Hide#LED Lighting: No
  • LED Lighting: –
  • Additional Information: See Overview
  • Package Type: Blister Pack
  • Package Weight: 0.0270 kg
  • Warranty: Lifetime

In stock

EAN: 740617325096 SKU: KVR48U40BS8-16 Category:

Description

16GB 1Rx8 2G x 64-Bit PC5-4800 CL40 288-Pin DIMM

ValueRAM's KVR48U40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free



Additional information

Weight 0.027 kg
Brand

Kingston
MPN

KVR48U40BS8-16
