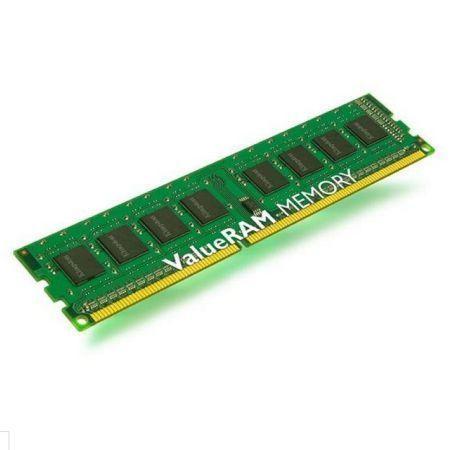

Kingston 4GB, DDR3, 1600MHz (PC3-12800), CL11, DIMM Memory, Single Rank

Kingston 4GB, DDR3, 1600MHz (PC3-12800), CL11, DIMM Memory, Single Rank

£21.99

Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR3
  • Size: 1 x 4GB
  • #Hide#Individual Module Size: 4GB
  • #Hide#Total Capacity: 4GB Total
  • Speed: 1600 MHz
  • Compliance: PC3-12800
  • Pins: 240-pin
  • CAS Latency: CL11
  • Data Integrity Check: Non-ECC
  • Voltage: 1.5V
  • Heatspreader : No
  • #Hide#LED Lighting: No
  • Package Type: Blister Pack
  • Package Weight: 0.0225 kg
  • Warranty: Lifetime

In stock

SKU: KVR16N11S8/4 Category:
KINGSTON

Description

KVR16N11S8/4
4GB 1Rx8 512M x 64-Bit PC3-12800 CL11 240-Pin DIMM
ValueRAM’s 512M x 64-bit (4GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold
contact fingers.
Features
• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 0.740” (18.75mm), single sided component

Additional information

Weight 0.0225 kg
Brand

Kingston
MPN

KVR16N11S8/4
