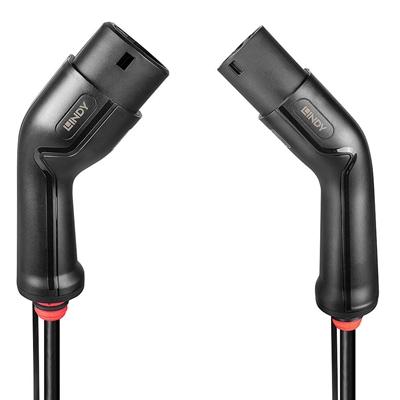

LINDY 30112 5m Type 2 EV-Charging cable, 22kW, 3-phase charging for electric and hybrid vehicles, Supplied with a carrying bag for convenient storage, 2 year warranty


  • Connection A: Type 2 Female (IEC 62196)
  • Connection B: Type 2 Male (IEC 62196)
  • Connection C: None
  • Length: 5m
  • Colour: Black

Out of stock

SKU: 30112 Category:


Quickly recharge your E-Vehicle or Plug in Hybrid with the Lindy Type 2 cables. With this charging cable you can recharge any vehicle, fitted with a Type 2 port, at a public charging station or wall box. As Type 2 is standard in the EU, you can use this cable at most charging stations in the European area. 3-phase charging with up to 22kW (32A 480VAC) is possible as well as 1-phase charging.

The cable is well protected against dust and water (IP55), it is UV-resistant and the connectors are flame retardant (UL 94 V-0). The plugs are designed for more than 10,000 mating cycles, which means a lifespan of more than 10 years with daily use.

When not in use the cable can easily be stored in the carrying bag which is supplied with the product.

This product has been certified by TUV Rheinland.


Connector A: Type 2 Female (IEC 62196)
Connector B: Type 2 Male (IEC 62196)
Housing Material: PC & Nylon
Dimensions (approx.) WxDxH:
Type 2 Female: 204.2×122.3x71mm (8,04×4.81×2.8in)
Type 2 Male: 214.1×115.5x56mm (8.43×4.55×2.2in)

Cable Construction

Length: 5m (16.40ft)
Colour: Black
Charging Mode: Mode 3
Number of Phases: 3
Jacket Diameter: 16.8mm (0.66in)
Jacket Material: TPU
Conductor Material: Copper alloy with silver plating


Rated Current: 32A
Operation Voltage: 480V
Charging Power: 22kW
Minimum Bend Radius: 84mm (3.31in)
Protection Level: IP55, IP65 (with protection caps)
UV Resistant: Yes
Flame Retardant Grade: UL 94 V-0 (connectors), EN 60332-1-2 (cable)
Operating Temperature: -30?C – 50?C (-22?F – 122?F)
Storage Temperature: -30?C – 40?C (-22?F – 104?F)


Packaging Type: Carton Box
Warranty (Years): 2
Product Compliance: CE, UKCA, RoHS, REACH, TUV

Additional information





Connection A

Type 2 Female (IEC 62196)

Connection B

Type 2 Male (IEC 62196)

Connection C
