Description

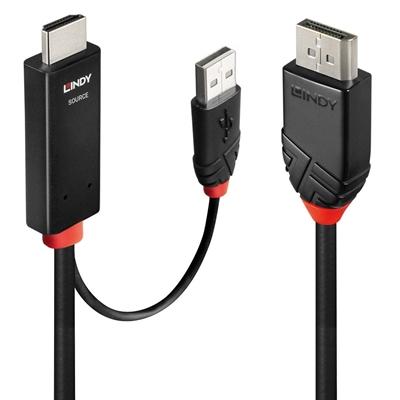

Lindy?s HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors.
With support for resolutions up to 4096×2160@60Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
Connectors
Connector A:
HDMI Type A Male, USB Type A Male
Connector B:
DisplayPort A Male
Housing Material:
ABS
Connector Plating:
Nickel Plating
Pin Construction:
Gold Plating
Pin Plating:
Gold Plating
Dimensions (approx.) WxDxH:
HDMI:
HDMI: 50×20.9×12.7mm (1.97×0.82×0.5in)
USB:
35×15.5×7.8mm (1.38×0.61×0.31in)
DisplayPort:
38.9×19.7x12mm (1.53×0.78×0.47in)
Cable Construction
Length:
2 (6.56ft)
Standard:
DP 1.2, HDMI 2.0
Colour:
Black
Type:
Round
Jacket Diameter:
6mm (0.24in)
Jacket Material:
PVC
Conductor Material:
Tinned Copper
Conductor Gauge:
30AWG
Shielding:
85%
Specifications
Supported Bandwidth:
21.6GB/s
Maximum Resolution:
4096×2160@60Hz 4:4:4 8Bit
4096×2160@60Hz 4:2:2 12Bit with HDR
Nominal Attenuation:
80 – 90%
Minimum Bend Radius:
36mm (1,42in)
Operating Temperature:
-20?C – 40?C (-4?F – 104?F)
Storage Temperature:
-40?C – 80?C (-40?F – 176?F)
Miscellaneous
Packaging Type:
Polybag
Warranty (Years):
2
Product Compliance:
CE, UKCA, FCC, RoHS & REACH
