LINDY 42805 50m USB 1.1 Cat.6 Extender

£31.99

  • Connection A: USB Type A (Male)
  • Connection B: RJ45 (Female)
  • Connection C:
  • Length: 50m
  • Colour: Grey

Out of stock

SKU: 42805 Categories: , ,

Description

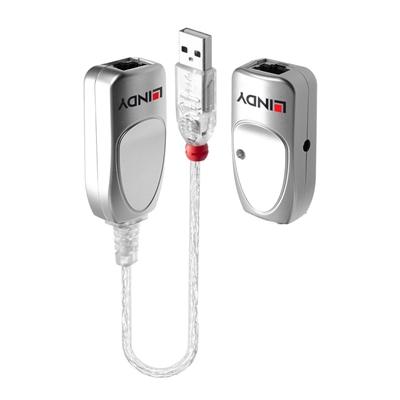

The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 50m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like storage devices, perfect for long-distance access to files.

Standard, low-cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

A power supply can be connected optionally for use with high current USB devices.

Specifications

USB Standard:
USB 1.1

Supported Bandwidth:
12Mbps

Maximum Distance:
50m (164.04ft)

Transmission Medium:
Cat.5e/6 or higher network cable

Chipset:
LAN0101

Special Features:
Supports isochronous data transfer

Connectors

Transmitter Input:
USB Type A (Male)

Transmitter Output:
RJ45 (Female)

Receiver Input:
RJ45 (Female)

Receiver Output:
USB Type A (Female)

Power:
3.5/1.35mm DC socket

Physical Properties

Dimensions WxDxH:
30x63x20mm (1.18×2.48×0.79in)

Housing Material:
Plastic

Net Weight:
0.06kg (0.13lb)

Operating Temperature:
-0? – 70?C (32?F – 158?F)

Storage Temperature:
-20?C – 80?C (-4?F – 176?F)

Humidity:
0 – 90% RH (non-condensing)

Colour:
Grey

Miscellaneous

Packaging Type:
Carton Box

Packaging Dimensions:
249x156x27mm (9.8×6.14×1.06in)

Gross Weight:
0.119kg (0.26lb)

Warranty (Years):
2

Certified:
CE, UKCA, FCC, RoHS & REACH

Package contents
Transmitter unit
Receiver unit
Lindy Manual
