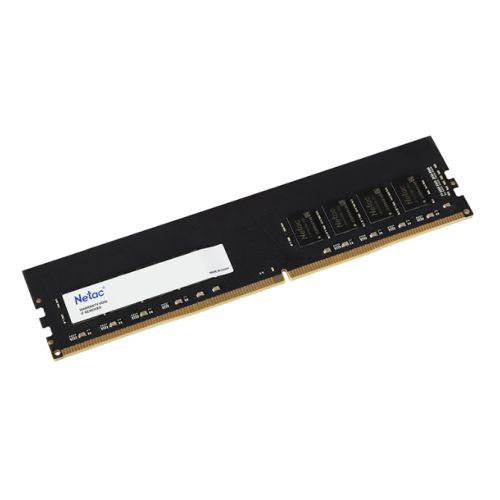

Netac NTBSD4P32SP-16 16GB DIMM System Memory, DDR4, 3200MHz, 1 x 16GB, 288 Pin, 1.35v, CL16-20-20-40 Bulk Packaged

£25.99

  • Form Factor: DIMM
  • DDR Type: DDR4
  • Speed: 3200MHz
  • Capacity: 16GB
  • RGB: No

Out of stock

SKU: NTBSD4P32SP-16 BULK Category:

Description

NTBSD4P32SP-16 is a 2G x 64-bit (1R8) DDR4-3200 C16 SDRAM (Synchronous DRAM), memory module based on eight 2G x 8-bit FBGA components per module. The SPD is programmed to latency timing of 16-20-20 at 1.35V. support XMP, Each 288-pin DIMM uses gold contact fingers.

FEATURES

Power Supply
VDD=1.35V Typical

VDDQ
1.2V Typical

VPP
2.5V Typical

VDDSPD
2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB
Height 1.23? (31.25mm)

RoHS Compliant and Halogen-Free

SPECIFICATIONS

CL(IDD)
16 cycles

Row Cycle Time (tRCmin)
45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)

Row Active Time (tRASmin)
32ns(min.)

Maximum Operating Power
TBD W

UL Rating
94V-0

Operating Temperature
0 C to +70 C

Storage Temperature
-40 C to +85 C

Additional information

Brand

NETAC

MPN

NTBSD4P32SP-16 BULK

Form Factor

DIMM

DDR Type

DDR4

Speed

3200MHz

Capacity

16GB

RGB

No
