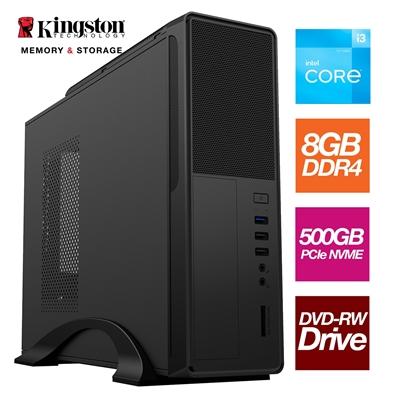

Small Form Factor – Intel i3 12100 4 Core 8 Threads 3.30GHz (4.30GHz Boost), 8GB Kingston RAM, 500GB Kingston NVMe M.2,DVDRW Optical, with Wi-Fi 6 – Small Foot Print for Home or Office Use – Pre-Built PC

£387.99

  • Form Factor: Small Form Factor
  • Processor Brand: Intel
  • Processor Cores: 4
  • Storage: 500GB
  • Memory: 8GB
  • Graphics: On-Chip
  • Operating Software: No

In stock

SKU: SBBUS-SF-L3128 Category:

Description

Micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

Product Description
Small Form Factor – Intel i3 12100 4 Core 8 Threads 3.30GHz (4.30GHz Boost), 8GB Kingston RAM, 500GB Kingston NVMe M.2,DVDRW Optical, with Wi-Fi 6 – Small Foot Print for Home or Office Use – Pre-Built PC

Processor
Intel Core i3 12100 3.3GHz 4 Core LGA 1700 Alder Lake Processor, 8 Threads, 4.3GHz Boost, Intel UHD 730 Graphics

Processor Cores
4

Processor Threads
8

Core Clock Speed
3.30GHz

Core Boost Speed
4.30GHz

Memory
Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV2 (SNV2S/500G) 500GB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3500 MB/s, Write 2100 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Sequential Read (CDM): 3500 MB/s
Sequential Write (CDM): 2100MB/s

Hard Drive
N/A

Optical Drive
Hitachi-LG GH24NSD5.ARAA10B 24x DVDRW with M Disc Internal Optical Drive

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Execution Units
24
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
Built-in Card Reader – SD/MMC/MS 3in1

Networking
TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
Gigabyte H610M S2H DDR4 Motherboard, Intel Socket 1700, 12th Gen, Micro ATX, Digital VRM Design, PCIe 4.0, Gen3 x4 M.2, Realtek Gaming LAN, HDMI/DVI/VGA Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 6

Expansion Slot
1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25″ External
2 x 3.5″ Internal
2 x 2.5″ Internal
(1 x 2.5″ uses a 3.5″ bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC’97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
7 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)

Additional information

MPN

SBBUS-SF-L3128

Processor Brand

Intel

Processor Cores

4

Graphics

On-Chip

Brand

Filter by Size

Processor Type

Intel i3

Memory Size

8GB

Filter by Storage

512GB

Filter by Operating System

No O/S

Brand

TARGET
