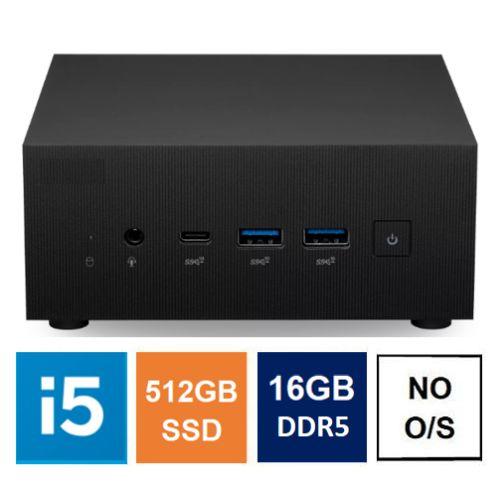

Spire Mini PC, Asus PN64 Case, i5-12500H, 16GB DDR5, 512GB SSD, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA Mountable, No Operating System

Description

Specification

• #Hide#Fully Built / Barebone: Fully Built
• Chassis: Asus Mini PC PN64
• Tower / Small Form Factor: Small Form Factor
• Processor: Intel Core i5-12500H (3.3GHz)
• Processor Details: 12-Core
  4.5GHz turbo
• Chipset: Integrated
• Graphics: Intel Iris Xe Graphics
• #Hide#Processor: Intel i5
• Memory: 16GB
• Memory Details: “Adata, DDR5, SODIMM
  4800MHz
  1 x 16GB
  Max 32GB
  2 DDR5 SODIMM slots (1 free)”
• Hard Drive: None
• SSD Drive: 512GB SSD
• Drive Details: Adata XPG SX8200 PRO
  M.2 2280 – NVMe
  R/W 3500/2300 MB/s
• Optical Drive: None
• Operating System: No O/S
• Front I/O: 1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen2
  1 x Audio Jack (Line out/ Mic in/ Headphone out)
  1 x Kensington Lock
• Back I/O: “1 x USB 3.2 Gen2
  1 x USB 3.2 Gen2 Type-C (support DP1.4, PD)
  2 x HDMI
  1 x Display Port 1.4
  1 x Intel (RJ45) 2.5G LAN
  1 x DC-in
  1 x Padlock ring”
• LAN: “2.5G LAN, Intel I225V”
• Wireless: Wi-Fi 6E
• Bluetooth: Bluetooth 5.2
• Expansion: 2.5″” SATA – only supports 7.5mm height
  1 x DDR5 SODIMM (Max 32GB total)
• Power Unit: “19Vdc, 6.32A, 120W Power Adapter”
• Keyboard and Mouse: No
• Dimensions: (WxDxH) 120 x 130 x 58 mm
  0.9L
• Package Weight: To be confirmed
• Package Type: Retail
• Warranty: “3 Years (1st year parts – collect and return (UK mainland only), 2nd & 3rd years labour only)”
