Description

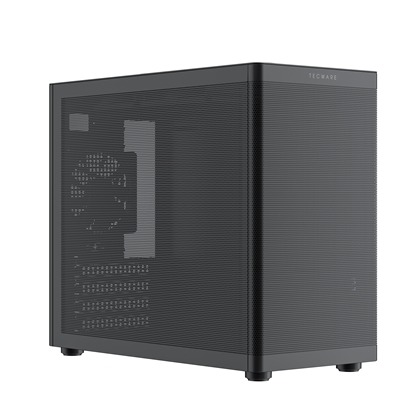

The TecWare Fusion 3 MATX Compact Mesh Case (TWCA-FUS3-BK) is a high-performance, space-saving chassis built for efficient airflow in compact builds. With a top-mounted PSU layout and pre-installed fans, this case is optimized for SFF systems without compromising cooling or hardware support.
Compact design with mesh intake for maximum airflow
Top-mounted PSU for efficient space management
Pre-installed fans: 2 x 120mm (top) + 1 x 90mm (rear)
Supports mATX and ITX motherboards
USB-C and USB 3.0 front panel connectivity
Case Specifications
Form Factor
Micro ATX
Motherboard Support
Micro ATX
Mini-ITX
PSU Support
ATX / SFX
PSU Location
Top-mounted
Body Material
Steel, Plastic, Mesh
Front Bezel Material
Mesh
Side Panel
Steel (non-tempered glass)
Internal Cable Management Depth
Approx. 15–20mm
Drive Bays
1 x 3.5″ HDD
1 x 2.5″ SSD
Expansion Slots
4 x Full Size
Cooling
Top: 2 x 120mm (Included)
Rear: 1 x 90mm (Included), supports 80mm
Bottom: Up to 2 x 120mm (1 x 120mm if HDD installed)
IO Ports
1 x USB 3.0
1 x USB-C
1 x HD Audio
GPU Max Length
280mm
CPU Cooler Maximum Height
140mm
PSU Max Length
150mm
Front Bezel Colour
Black (Mesh)
Body Colour
Black
PSU Included
No
Dimensions (W x H x D)
168 x 302 x 350 mm
Weight
Approx. 3.5kg
