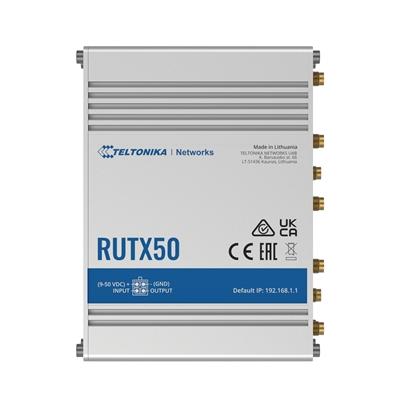

TELTONIKA RUTX50 Industrial 5G Gateway Router – RUTX50

£483.99

  • Connection Type: 5G
  • Speed: 300Mbps
  • Access Point: No

Out of stock

SKU: RUTX50000100 Category:

Description

RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with Gigabit Ethernet ports and dual-band Wi-Fi, it enables reliable data transfer with autofailover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options

Connectivity

5G
Ultra-high cellular speeds of up to 3.3 Gbps

DUAL SIM
Uninterrupted communication with auto-failover

SA & NSA
Supports both architectures to leverage the 5G infrastructure

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

HARDWARE

Mobile
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2) 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

CPU
Quad-core ARM Cortex A7, 717 MHz

Storage
256 MB Flash

Memory
256 MB RAM

Powering option
4-pin power socket, 9-50 VDC

SIM
2 x External SIM holders (2FF)

Antenna connectors
4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

Ethernet
5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN

WiFi
IEEE 802.11b/g/n 2.4GHz, IEEE 802.11n/ac 5GHz, Access point (AP), Station (STA)

Wireless mesh/roaming
Wireless mesh (802.11s), fast roaming (802.11r)

GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS

Inputs/Outputs
On 4-pin socket: 1 x Digital input, 1 x Digital open collector output

Other
1 x USB host, 1 x Grounding screw

Status LEDs
3 x connection type, 3 x signal strength, 10 x Ethernet, 4 x WAN tipe, 1x Power, 2 x 2.4G and 5G WiFi

Operating temperature
-40 °C to 75 °C

Housing
Aluminum housing, DIN rail mounting option

Dimensions
(W x H x D) 132 x 44.2 x 95.1 mm

SOFTWARE

Operating system
RutOS (OpenWrt based Linux OS)

Mobile features
Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits

Network
Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring

Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)

VPN and tunneling
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier

Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS

Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Hotspot
External/Internal Radius, SMS OTP, MAC authentication, Walled Garden

GNSS
NMEA forwarding, AVL, Geofencing

PACKAGE CONTENTS

RUTX50 Router
18 W PSU
4 x Mobile antennas (swivel, SMA male)
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide) / RMS Flyer
Packaging box

Additional information

Brand

TELTONIKA

MPN

RUTX50000100

Connection Type

5G

Speed

300Mbps

Access Point

No

Brand

TELTONIKA
