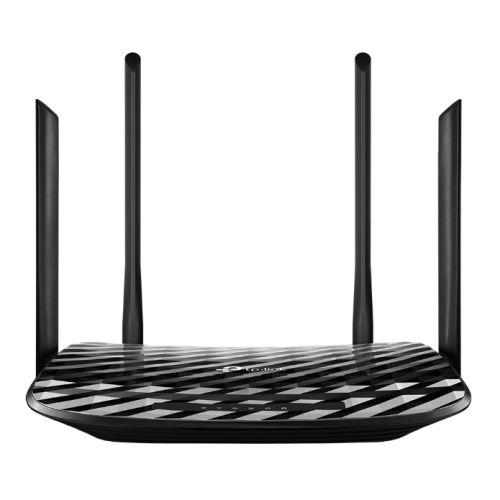

TP-LINK Aginet (EC225-G5) AC1300 Dual Band MU-MIMO Wi-Fi Router, EasyMesh, Remote Management, 1 WAN, 3 LAN




  • Type: Cable Router
  • Connectivity: Wireless
  • Max Wireless Transfer Rate: 867 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Bands: Dual Band
  • Signal Rate: 5 GHz: 867 Mbps
    2.4 GHz: 400 Mbps
  • Interface(s): 1 x 10/100/1000 Mbps WAN Port
    3 x 10/100/1000 Mbps LAN Ports
  • Standards:Wireless Standards:
    IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11 k/v

    IPv4, IPv6″

  • Frequency: 2.4 GHz and 5 GHz
  • Button(s): “Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button”
  • Power Supply: 12V/1.0A
  • Antenna(s): 4 x Fixed Omni Directional Antennas
  • Dimensions: 230 x 144 x 35 mm
  • Wireless Functions: “Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Schedule, Wireless Statistics, Access Point mode”
  • Security:Wireless Security:
    WPA/WPA2/WPA3 encryption

    Access Control:
    Parental Controls, White List, Black List

    Firewall Security:
    DoS, SPI Firewall, IP and MAC Address Binding”

  • DHCP: “Server, DHCP Client List, Address Reservation”
  • Port/NAT Forwarding: “Port Forwarding:
    Server, DHCP Client List, Address Reservation”
  • VPN Support: “VPN Pass-Through: PPTP, L2TP, IPSec
    VPN Server: PPTP, OpenVPN”
  • Management: “Local management: WebGUI, Aginet app
    Remote management: TR-069, TR-181, TR-111, TR143, Aginet ACS”
  • Dynamic DNS: “DynDns, NO-IP”
  • USB Application:
  • Advanced Features: See Overview
  • Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
    Storage Temperature: -40°C–60°C (-40°F –140°F)
    Operating Humidity: 10%–90% non-condensing
    Storage Humidity: 5%–90% non-condensing
  • Package Contents: AC1300 MU-MIMO Wi-Fi Router EC225-G5
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Years
  • #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
  • #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)

Out of stock

SKU: EC225-G5 Category:



AC1300 MU-MIMO Wi-Fi Router

  • Faster WiFi for More Devices: 2.4 GHz and 5 GHz bands run at fast AC1300 Wi-Fi speeds to deliver more bandwidth and support more devices in your home.*
  • Full Gigabit Ports: Enjoy fast, reliable wired connections for gaming and streaming in the best quality.
  • Extensive Coverage: Beamforming, and four antennas combine to deliver focused reception to devices far away.
  • EasyMesh Compatible: Provides whole home Wi-Fi coverage with standard mesh technology.
  • Enhanced Protection: Protect your network with firewalls, parental controls, and the latest WPA3 encryption.**
  • Easy Setup: Set up your router in minutes with the intuitive web interface or the powerful Aginet app.
  • Remote Management: TR-181, TR-111, TR-104, and TR-143 are supported.


Dual Band WiFi up to 1.3 Gbps
EC225-G5 allows you to connect more devices and stream simultaneously with its dual 2.4 GHz and 5 GHz bands. The 5 GHz band delivers speeds up to 867 Mbps, great for bandwidth-intensive applications like video streaming and online gaming. The 2.4 GHz band provides reliable connections for sending emails, web browsing, and other simple tasks.*
Connect More Devices Simultaneously
Thanks to MU-MIMO technology, EC225-G5 lets your devices achieve optimal performance by making communication more efficient. With two simultaneous data streams, every connected device can achieve faster speeds than with standard AC routers.**
Extensive WiFi Coverage
Beamforming technology and four high-gain antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.
Create Smart Mesh WiFi with Great Flexibility
Create a unified mesh WiFi network with several EC225-G5s working together or with other EasyMesh-compatible devices for seamless whole home coverage.
Robust Network Protection
WPA3 Security
Higher password safety and enhanced protection against brute-force attacks**
Parental Controls
Block inappropriate content and restrict time spent online
Guest Network
Create separate networks for your visitors or different applications, while keeping your main network secure
Gigabit Broadband Internet Access
The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three Gigabit Ethernet LAN ports for fast and reliable wired connections.
Easy Setup and Use
You can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
Remote Management for ISPs
ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Sever) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution: End-to-End Management System for ISPs
The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Use of MU-MIMO and WPA3 requires clients to also support the corresponding features.
