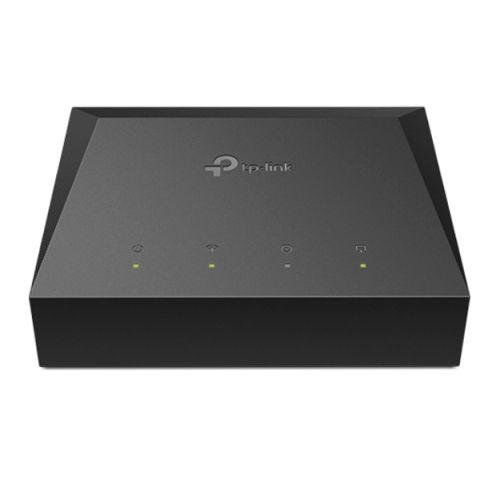

TP-LINK Aginet (XZ000-G3) 1-Port Gigabit GPON Terminal, QoS, Remote Management




  • Interface: “1 x 10/100/1000Mbps RJ45 Port, 1 SC/APC Port”
  • Button(s): Reset Button
  • Power Supply: External: 9VDC/0.6A
  • IEEE Standards: “IEEE 802.3, 802.3u, 802.1p, 802.1Q”
  • Data Rates: Upstream: 1.244Gbps
    Downstream: 2.488Gbps
  • Distance: 0 ~ 20 km Max
  • GPON Standards : “ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4”
  • Optical Module : Class B+
  • Receiver: Super-TIA
  • Transmitter: DFB Laser
  • Wavelength: Upstream: 1310nm
    Downstream: 1490nm
  • VLAN: “802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect”
  • Security: “AES Encryption, Packet Filter based on VLAN”
  • Management: “Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic”
  • Advanced Features : “Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism”
  • IGMP: IGMP v1/v2/v3
  • Dimensions: 95.0 x 75.0 x 29.3 mm
  • Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
    Storage Temperature: -40°C–70°C (-40°F –158°F)
    Operating Humidity: 10%–90% non-condensing
    Storage Humidity: 5%–90% non-condensing
  • Package Contents: XZ000-G3
    RJ-45 Ethernet Cable
    Quick Installation Guide
    Power Adapter
  • Package Weight: 0.2200 kg
  • Warranty: 3 Years

Out of stock

SKU: XZ000-G3 Category:


1-Port Gigabit GPON Terminal

  • Quality of Service – Quality of Service control for transaction prioritization and bandwidth management
  • Durability – Intelligent power-saving method
  • Easy Remote Management – TR-069 protocol enables an operator to remotely configure and manage end-user devices
  • Full Gigabit Port – Fiber access and gigabit port provide incredibly fast transfer speeds
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G3 supports maximum data rates of up
to 2.488Gbps downstream, 1.244Gbps upstream.

Make Fiber-to-the-Home Yours
TP-Link’s XZ000-G3 is a Gigabit Passive Optical Network(GPON) terminal, ideal for Fiber-to-the-Home solution.

Full Gigabit Port
One GPON port and one Gigabit Ethernet port, the XZ000-G3 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

Ease of Use
Quick and hassle-free installation



Additional information

Weight 0.22 kg
