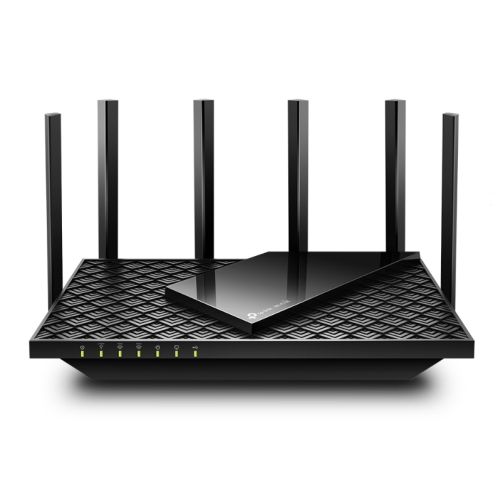

TP-LINK (Archer AXE75) AXE5400 Wi-Fi 6E Tri-Band GB Router, OneMesh, USB, Ultra-Low Latency, OFDMA, HomeShield, Alexa Voice Control




  • Type: Cable Router
  • Connectivity: Wireless
  • Max Wireless Transfer Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Bands: Tri Band
  • Signal Rate: 6 GHz: 2402 Mbps (802.11ax)
    5 GHz: 2402 Mbps (802.11ax)
    2.4 GHz: 574 Mbps (802.11ax)
  • Interface(s): 1 x Gigabit WAN
    4 x Gigabit LAN
    1 x USB 3.0
  • Standards: “IEEE 802.11ax 6 GHz,
    IEEE 802.11ax/ac/n/a 5 GHz,
    IEEE 802.11ax/n/b/g 2.4 GHz”
  • Frequency: 2.4 GHz / 5 GHz / 6GHz
  • Button(s): Wi-Fi On/Off Button
    Power On/Off Button
    LED On/Off Button
    WPS Button
    Reset Button
  • Power Supply: 12 V = 2.5 A
  • Antenna(s): 6 x Fixed High-Performance Antennas
  • Dimensions: (WxDxH) 272.5 x 147.2 x 49.2 mm
  • Wireless Functions: OFDMA
    Airtime Fairness
    6 Streams
    Connect your devices to more bandwidth
    Router Mode
    Access Point Mode
    OneMesh Supported
  • Security:WiFi Encryption:
    WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

    Network Security:
    SPI Firewall
    Access Control
    IP & MAC Binding
    Application Layer Gateway

    Parental Controls:
    Custom Profiles
    Professional Content Filter Library
    Family Time
    Off Time
    Time Rewards
    Family Online Time Ranking
    Pause the Internet
    Weekly and Monthly Reports”

  • DHCP: Address Reservation
    DHCP Client List
  • Port/NAT Forwarding: Port Forwarding
    Port Triggering
    Virtual Server
  • VPN Support: VPN Server:
    OpenVPN Server
    PPTP VPN Server
    L2TP VPN Server

    VPN Client:
    Open VPN Client
    PPTP VPN Client
    L2TP VPN Client

  • Management: Tether App
  • Dynamic DNS: TP-Link
  • USB Application:Supported Partition Formats:
    NTFS, exFAT, HFS+, FAT32

    Supported Functions:
    Apple Time Machine
    FTP Server
    Media Server
    Samba Server”

  • Advanced Features: See Overview
  • Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
    Operating Humidity: 10%~90% non-condensing
  • Package Contents: Wi-Fi Router Archer AXE75
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
  • Package Type: Retail
  • Package Weight: 1.5500 kg
  • Warranty: 3 Years
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)

In stock

SKU: ARCHER AXE75 Categories: ,


AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

  • AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.†
  • Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
  • SuperSpeed USB 3.0 – Up to 10x faster transfer speeds than USB 2.0.
  • Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
  • HomeShield – Customize your home network with enhanced security and control.
  • OneMesh™  – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
  • Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
  • Ultra-Low Latency—Enables more responsive gaming and video chatting.
  • Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.


WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.

Maximize All Your Device Speeds
Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

More RAM, Better Processing
With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.

Connect More Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands, eliminating latency and jitter.

WiFi Coverage Throughout Your Home
6x high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere.

TP-Link OneMesh™
Flexibly Create Whole Home WiFi with Archer AXE75
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching for a stable connection.

  • WiFi Dead Zone Killer – Eliminate weak signal areas with WiFi coverage for the whole house
  • Smart Roaming – Uninterrupted streaming when moving around your home
  • One WiFi Name – No more switching WiFi network names
  • Unified Management – Manage your whole home WiFi from the central node via the Tether app/Web UI

TP-Link HomeShield
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
  • Home Network Scanner – Real-time network scanner to detect potential threats and security issues.
  • Parental Controls – Manage time online and block inappropritate content keeping your family safe online.
  • Quality of Service – Assign your favorite devices to have the fastest connections for top performance.

WPA3: Stronger Security for Your Network

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

  • Brute-Force Attack Protection
  • Stronger WiFi Encryption
  • (IoT looks off) Add Devices Safely


Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.

New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.


Additional information

Weight 1.55 kg
