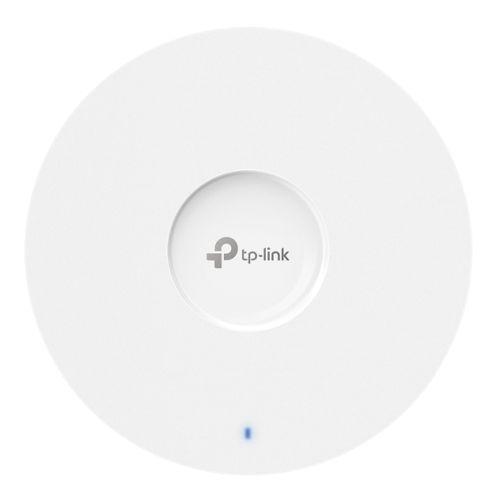

TP-LINK (EAP683 LR) AX6000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, 2.5G LAN




  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Max Wireless Transfer Rate: 4804 Mbps
  • Max Wired Transfer Rate: 2.5 Gbps
  • Interface(s): 1 x 2.5 Gigabit PoE+ Port
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Antenna(s): Internal Omni
    2.4 GHz: 4x 4 dBi
    5 GHz: 4x 5 dBi
  • Button(s): Reset
  • Power Supply: 802.3at PoE
    12 V / 2 A DC
    NOTE: Power adapter is not included.
  • Power Consumption: 20.43W
  • Dimensions: 220 x 220 x 32.5 mm
  • Weatherproof: No
  • Frequency: 5 GHz: Up to 4804 Mbps
    2.4 GHz: Up to 1148 Mbps
  • EIRP: “CE: <20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz, band1 & band2, EIRP)
    <28 dBm(5 GHz, band3, EIRP)"
  • Wireless Functions: “1024-QAM
    4x Longer OFDM Symbol
    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    HE160 (160 MHz Bandwidth)
    Seamless Roaming
    Omada Mesh
    Band Steering
    Load Balance
    Airtime Fairness
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client”
  • Wireless Security: “Captive Portal Authentication§
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
  • Management: “Omada App
    Centralized Management
    Omada Hardware Controller (OC200 & OC300)
    Omada Software Controller
    Omada Cloud-Based Controller
    Cloud Access – Requires controller
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP: v1, v2c, v3
    System Logging Local/Remote Syslog
    Web-based ManagementL: HTTP/HTTPS
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning – Requires Cloud-Based Controller”
  • Advanced Functions: See Overview
  • Environment: Operating Temperature: 0–40 °C (32–104 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: EAP683 LR
    Ceiling/Wall Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 1.3100 kg
  • Warranty: Limited Lifetime

Out of stock

SKU: EAP683 LR Categories: ,


AX6000 Ceiling Mount WiFi 6 Access Point

  • Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
  • Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
  • Integrates with Omada SDN platform for centralized management.
  • Advanced Features: Omada Mesh, Seamless Roaming, and more.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included).
  • Long-Range Coverage
  • 2.5GE Wired Performance
  • Auto Channel Selection and Power Adjustment


Additional information

Weight 1.31 kg
