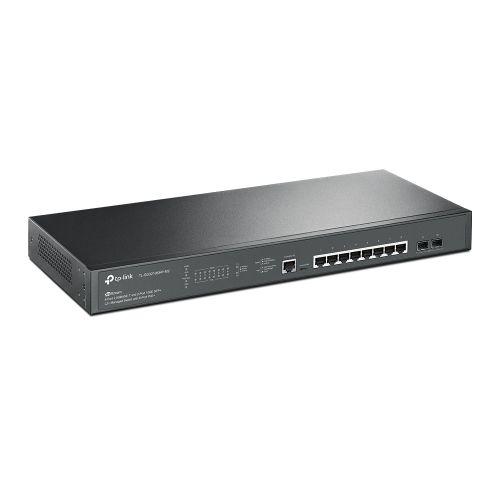

TP-LINK (TL-SG3210XHP-M2) JetStream 8-Port 2.5GBASE-T & 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, L2+/L3, Rackmountable

TP-LINK (TL-SG3210XHP-M2) JetStream 8-Port 2.5GBASE-T & 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, L2+/L3, Rackmountable

£388.99

Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 8
  • Max RJ45 Transfer Rate: 2.5 Gbps
  • Interface(s): 8 x 100/1000/2500 Mbps RJ45 Ports
    2 x 10G SFP+ Slots
    1 x RJ45 Console Port
    1 x Micro-USB Console Port
  • PoE Ports (RJ45): 8 x 802.3at/af-compliant PoE+ ports
    Total power supply of 240W
  • Switching Capacity: 80 Gbps
  • Power Supply: 100-240 V AC~50/60 Hz
  • Dimensions: 440 x 180 x 44 mm
  • Mac Address Table: 16 K
  • Packet Forwarding Rate: 59.52 Mpps
  • Jumbo Frame: 9 KB
  • Advanced Functions: Support Omada Hardware/Software/Cloud-Based Controller
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
    ZTP (Zero-Touch Provisioning)
  • Quality of Service: 8 priority queues
    802.1p CoS/DSCP priority
    Queue scheduling
    Bandwidth Control
    Smoother Performance
    Action for Flows
  • Layer Features: L2 and L2+:
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    Flow Control
    Mirroring

    L3:
    16 IPv4/IPv6 Interfaces
    Static Routing
    Static ARP
    Proxy ARP
    Gratuitous ARP
    DHCP Server
    DHCP Relay
    DHCP L2 Relay

  • VLAN: “VLAN Group
    802.1Q Tagged VLAN
    MAC VLAN: 7 Entries
    Protocol VLAN: Template 16, VLAN 16
    Private VLAN
    GVRP
    VLAN VPN (QinQ)
    Voice VLAN”
  • Access Control: Time-based ACL
    MAC ACL
    IP ACL
    Combined ACL
    Packet Content ACL
    IPv6 ACL
    Policy
    ACL apply to Port/VLAN
  • Security: IP-MAC-Port Binding
    IPv6-MAC-Port Binding
    DoS Defend
    Static/Dynamic Port Security
    Broadcast/Multicast/Unicast Storm Control
    802.1X
    AAA (including TACACS+)
    Port Isolation
    Secure web management – HTTPS with SSLv3/TLS 1.2
    Secure CLI management with SSHv1/SSHv2
    IP/Port/MAC based access control
  • Management: “Web-based GUI
    CLI through the console port, telnet
    SNMP v1/v2c/v3
    SDM Template
    DHCP/BOOTP Client
    802.1ab LLDP/LLDP-MED
    DHCP AutoInstall
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    Password Recovery
    SNTP
    System Log”
  • Environment: “Operating Temperature: 0–45C (32–113F);
    Storage Temperature: -40–70C (-40–158F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing”
  • Package Contents: TL-SG3210XHP-M2 Switch
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 2.9480 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes

Out of stock

SKU: TL-SG3210XHP-M2 Category:
TP-LINK

Description

JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+


  • 2.5G PoE+ Ports for WiFi 6: 8x 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
  • 10G Lightning-Fast Uplink: 2x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • 240 W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Unlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports
Featuring 8x 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios.

Enterprise Switch with 10G Uplink
2x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.



Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.



Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.



ISP Features***
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.



IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.



*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.

***L3 and ISP features can only be configured in standalone mode.

Additional information

Weight 2.948 kg

Brand

TP-LINK
