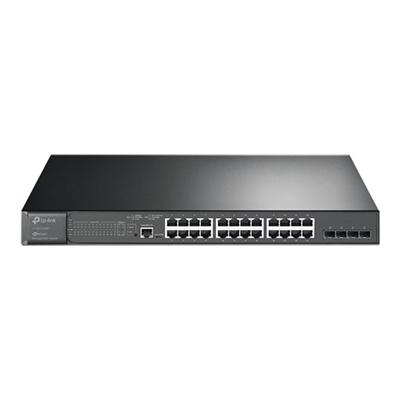

TP-LINK (TL-SG3428MP) JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+, 4 SFP Slots, Rackmountable

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 28
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 24 x 10/100/1000Mbps RJ45 Ports
  4 x Gigabit SFP Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• PoE Ports (RJ45): “Standard: 802.3at/af compliant
  PoE+ Ports: 24 Ports, up to 30 W
  Power Supply: 384 W”
• Switching Capacity: 56 Gbps
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions: 440 x 180 x 44 mm
• Mac Address Table: 8K
• Packet Forwarding Rate: 41.66 Mpps
• Jumbo Frame: 9 KB
• Advanced Functions: Support Omada Hardware Controller
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)
• Quality of Service: 8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling
  Bandwidth Control
  Port/Flow based Rating Limiting
  Smoother Performance
  Action for Flows
• Layer Features: “Link Aggregation
  Spanning Tree Protocol
  Protect, Root Protect, Loop Protect
  Loopback Detection
  Flow Control
  Mirroring
  L2 Multicast
  Supports 511 (IPv4, IPv6) IGMP groups
  IGMP Snooping
  IGMP Authentication
  MVR
  MLD Snooping
  Multicast Filtering”
• VLAN: “VLAN Group
  802.1q Tagged VLAN
  MAC VLAN: 12 Entries
  GVRP
  VLAN VPN (QinQ)
  Voice VLAN
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16″
• Access Control: Time-based ACL
  MAC ACL
  IP ACL
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  IP/Port/MAC based access control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure CLI management with SSHv1/SSHv2
• Management: “Web-based GUI
  CLI through console port, telnet
  SNMPv1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log”
• Environment: “Operating Temperature: 0C~45C (32F~113F);
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing”
• Package Contents: Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 6.2000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
