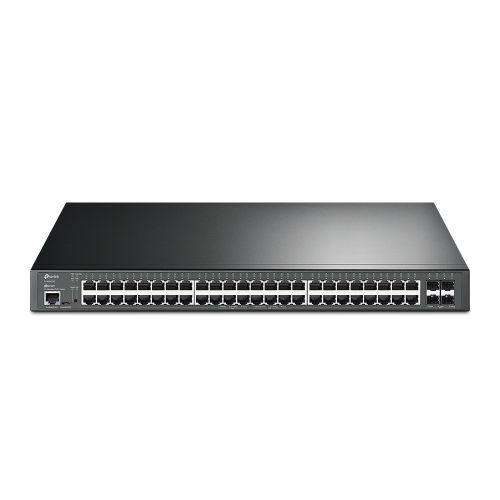

TP-LINK (TL-SG3452XP) JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+, Rackmountable

TP-LINK (TL-SG3452XP) JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+, Rackmountable

£899.99

Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 48
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: 10G SFP
  • Interface(s): 48 x 10/100/1000 Mbps RJ45 PoE+ Ports
    4 x 10G SFP+ Slots
    1 x RJ45 Console Port
    1 x Micro-USB Console Port
  • PoE Ports (RJ45): “Standard: 802.3at/af compliant
    PoE+ Ports: 48 Ports, up to 30 W per port
    Power Budget: 500 W”
  • Switching Capacity: 176 Gbps
  • Power Supply: 100-240 V AC~50/60 Hz

    Consumption:
    49.19 W (110V/60Hz) (no PD device connected)
    635.7 W (110V/60Hz) (with 500 W PD device connected)

  • Dimensions: (WxDxH) 440 x 330 x 44 mm
  • Mac Address Table: 16 K
  • Packet Forwarding Rate: 130.9 Mpps
  • Jumbo Frame: 9 KB
  • Advanced Functions: Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
  • Quality of Service: 8 priority queues
    802.1p CoS/DSCP priority
    Queue scheduling
    Bandwidth Contro
    Smoother Performance
    Action for Flows
  • Layer Features: L2 and L2+ Features
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    Flow Control
    Mirroring

    L2 Multicast
    IGMP Snooping
    IGMP Authentication
    MLD Snooping
    MVR
    Multicast Filtering: 256 profiles and 16 entries per profile

  • VLAN: “VLAN Group
    802.1Q Tagged VLAN
    MAC VLAN: 30 Entries
    Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    Private VLAN
    GVRP
    VLAN VPN (QinQ)
    Voice VLAN”
  • Access Control: Time-based ACL
    MAC ACL
    IP ACL
    Combined ACL
    Packet Content ACL
    IPv6 ACL
    Policy
    ACL apply to Port/VLAN
  • Security: IP-MAC-Port Binding
    IPv6-MAC-Port Binding
    DoS Defend
    Static/Dynamic Port Security
    Broadcast/Multicast/Unicast Storm Control
    802.1X
    AAA (including TACACS+)
    Port Isolation
    Secure web management through HTTPS with SSLv3/TLS 1.2
    Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    IP/Port/MAC based access control
  • Management: “Omada App
    Centralized Management
    Cloud Access
    Zero-Touch Provisioning

    Management Features:
    Web-based GUI
    Command Line Interface (CLI) through the console port, telnet
    SNMP v1/v2c/v3
    SDM Template
    DHCP/BOOTP Client
    802.1ab LLDP/LLDP-MED
    DHCP AutoInstall
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    Password Recovery
    SNTP
    System Log”

  • Environment: Operating Temperature: 0–40°C (32–104°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: TL-SG3452XP Switch
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 6.6000 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes

Out of stock

SKU: TL-SG3452XP Category:
TP-LINK

Description

JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+


  • 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
  • PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.




Enterprise Switch with 10G Uplink
4x 10 Gbps SFP+ slots provide non-blocking switching performance, and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Dedicated 48 PoE+ Ports (500 W Budget) for Numerous Applications
The 48x 802.3af/at compliant PoE+ ports support up to 500 W total PoE power budget.* Designed to use a single Ethernet cable for data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.



Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.***

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.



Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.



Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.



ISP Features***
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.



IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.



*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.

**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.

**ISP features can only be configured in standalone mode.



Additional information

Weight 6.6 kg
Brand

TP-LINK
MPN

TL-SG3452XP
