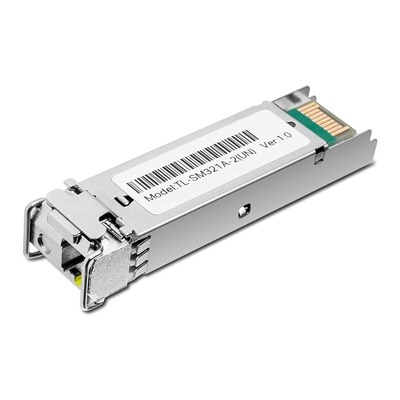

TP-LINK (TL-SM321A-2) 1000Base-BX WDM Bi-Directional SFP Module, Up to 2km, DDM, Hot Swappable

£16.99

Description

Specification

  • Device Type: Bi-Directional SFP Module
  • Standards and Protocols: “IEEE 802.3z, TCP/IP”
  • Cable: Single-mode Fiber
  • Fiber Type: 9/125 um Single-Mode
  • Data Rate: 1.25 Gbps
  • Wave Length: TX: 1550 nm
    RX: 1310 nm
  • Port Type: LC Simplex
  • Power Supply: 3.3 V
  • Environment (℃): “Operating Temperature: 0–70 °C (32–158 °F)
    Storage Temperature: -40–85 °C ( -40–185 °F)
    Operating Humidity: 10–90% RH, Non-Condensing
    Storage Humidity: 5–90% RH, Non-Condensing”
  • Package Type: Retail
  • Package Weight: 0.0610 kg
  • Warranty: 2 Years

Out of stock

SKU: TL-SM321A-2 Category:

Description

1000Base-BX WDM Bi-Directional SFP Module

  • Adopts the latest standard 1000Base-BX
  • Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Supports Hot Swappable
What This Product Does
TP-LINK´s TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link's TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.



Additional information

Weight 0.061 kg
Brand

TP-LINK

MPN

TL-SM321A-2

Brand

TP-LINK
