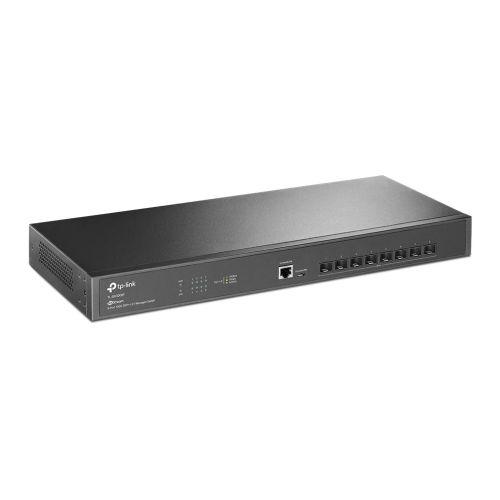

TP-LINK (TL-SX3008F) JetStream 8-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Fanless, Rackmountable

TP-LINK (TL-SX3008F) JetStream 8-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Fanless, Rackmountable

£233.99

Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 8
  • Interface(s): 8 x 10GE SFP+ Slots
    1 x RJ45 Console Port
    1 x Micro-USB Console Port
  • PoE Ports (RJ45): –
  • Switching Capacity: 160 Gbps
  • Power Supply: 100-240 V AC~50/60 Hz
    Max Power Consumption: 15.46 W (220 V / 50 Hz)
  • Dimensions: (W x D x H) 440 x 180 x 44 mm
  • Mac Address Table: 32 K
  • Packet Forwarding Rate: 119.04 Mpps
  • Jumbo Frame: 9 KB
  • Advanced Functions: “Support Omada Hardware, Software & Cloud-Based Controller
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
    ZTP (Zero-Touch Provisioning)”
  • Quality of Service: Advanced Quality of Service
  • Layer Features: L2 and L2+ Features
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    Flow Control
    Mirroring

    L2 Multicast
    IGMP Snooping
    IGMP Authentication
    MLD Snooping
    MVR
    Multicast Filtering: 256 profiles & 16 entries per profile

    LL3 Features
    16 IPv4/IPv6 Interfaces
    Static Routing
    Static ARP
    Proxy ARP
    Gratuitous ARP
    DHCP Server
    DHCP Relay
    DHCP L2 Relay

  • VLAN: “VLAN Group
    802.1Q Tagged VLAN
    MAC VLAN: 7 Entries
    Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    Private VLAN
    GVRP
    VLAN VPN (QinQ)
    Voice VLAN”
  • Access Control: Time-based ACL
    MAC ACL
    IP ACL
    Combined ACL
    Packet Content ACL
    IPv6 ACL
    Policy
    ACL apply to Port/VLAN
  • Security: IP-MAC-Port Binding
    IPv6-MAC-Port Binding
    DoS Defend
    Static/Dynamic Port Security
    Broadcast/Multicast/Unicast Storm Control
    802.1X
    AAA (including TACACS+)
    Port Isolation
    Secure web management – HTTPS with SSLv3/TLS 1.2
    Secure CLI management with SSHv1/SSHv2
    IP/Port/MAC based access control
  • Management: “Web-based GUI
    CLI through the console port, telnet
    SNMP v1/v2c/v3
    SDM Template
    DHCP/BOOTP Client
    802.1ab LLDP/LLDP-MED
    DHCP AutoInstall
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    Password Recovery
    SNTP
    System Log”
  • Environment: Operating Temperature: 0–45 °C (32–113 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: Switch
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 2.4000 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: No

In stock

SKU: TL-SX3008F Category:
TP-LINK

Description

JetStream 8-Port 10GE SFP+ L2+ Managed Switch

  • 10G Lightning-Fast Connections: 8x 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Easy and convenient management with cloud access and Omada app.
  • Static Routing: Route internal traffic for the efficient use of network resources.
  • Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
  • Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Full Fiber Switch with Lightning-Fast 10G

Build and expand your lightning-fast network with TP-Link TL-SX3008F – a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.#

Seamless Integration to Omada Cloud SDN

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features**

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.



Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.



Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.



ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.



IPv6 Support

An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.



*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.



Additional information

Weight 2.4 kg
Brand

TP-LINK
MPN

TL-SX3008F
