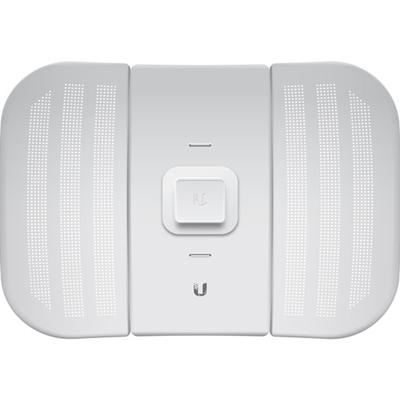

Ubiquiti LBE-M5-23 LiteBeam M5 23dBi airMAX Outdoor Wireless CPE Bridge

Description

The LiteBeam?M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.

High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds ? no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.

The Most Cost-Effective airMAX CPE Yet

Specifications

Throughput
100+ Mbps

Gain
23 dBi

Dimensions – No Mount
362 x 267 x 184 mm (14.25 x 10.51 x 7.24″)

Weight – No Mount
750 g (24.11 oz)

Mounting Kit
Pole Mounting Kit (Included)

Maximum Power Consumption
4W

Power Supply
24V, 0.2A PoE Adapter (Included)

Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Temperature
-40 to 70? C (-40 to 158? F)

Operating Humidity
5 to 95% Noncondensing

Shock and Vibration
ETSI300-019-1.4

ETSI Specification
EN 302 326 DN2

ESD/EMP Protection
? 24 KV Contact / Air

Processor
Atheros MIPS 74Kc, 533 MHz

Memory
64MB

Network Interface
(1) 10/100 Ethernet Port

Operating Frequency
Worldwide: 5150 – 5875 MHz

Output Power
25 dBm

Gain
23 dBi

Max. VSWR
1.5:1
