Scalable Enterprise Wi-Fi Management
UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network ? no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save Money and Save Time
UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud?service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a five-pack) and expand to thousands while maintaining a single unified management system.

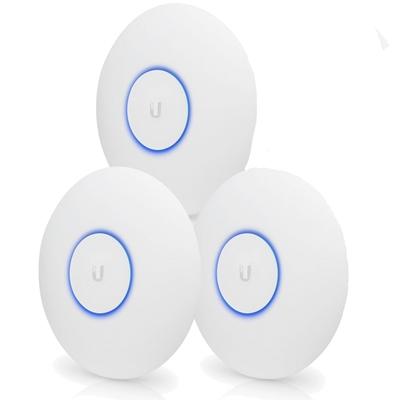

– 3 x UAP-nanoHD in a pack
– Small, Low-Profile Access Point
– Four-Stream 802.11ac Wave 2 Technology
– Supports 200+ Simultaneous Users
– Powered by 802.3af PoE
160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29″)
Weight With Mounting Kits
(1) 10/100/1000 Ethernet Port
UniFi Switch (PoE)
Maximum Power Consumption
Supported Voltage Range
44 to 57VDC
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
-10 to 70 C (14 to 158 F)
5 to 95% Noncondensing
CE, FCC, IC
