Description

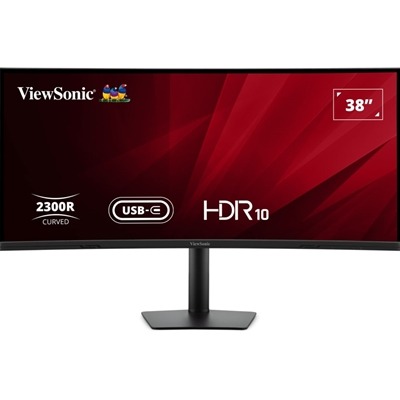

The ViewSonic VA3820C is a 38 Inch UWQHD+ (3840 x 1600) monitor featuring USB 3.0 Hub with 1 upstream, 2 downstream ports, HDMI, and DisplayPort for business and home use. Its 21:9 aspect ratio and 2300R curvature provide an immersive viewing experience. Simplify your work with just one cable that provides audiovisual, data and 96W power transfer. The 75hz refresh rate, Eye ProTech+ technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.
Ergonomic Workstation with One Cable Solution
Discover a monitor to simplify your work, boost your productivity, and provide comfort in your workspace thanks to one cable solution and ergonomic design.
Simplify Your Work with Just One Cable
The VA3820C allows for a streamlined workflow and eliminates the need for dongles and plug-in attachments. USB Type-C offers seamless video, audio, data and 96W power transfer.
Stunning WQHD+ Resolution on a 21:9 Ultra-wide Screen
Immerse yourself in a comfortable, wide viewing experience with stunningly detailed visuals. The VA3820C features WQHD+ resolution (3840 x 1600) and an ultra-wide 21:9 aspect ratio, offering 35% more screen space than a 16:9 monitor of the same size, making it perfect for enhanced multitasking.Stunning WQHD+ Resolution on a 21:9 Ultra-wide Screen
Viewing Comfort with Seamless Focus
The VA3820C’s 2300R curve is expertly designed to maintain a uniform visual distance, providing a more immersive viewing experience. Whether you are managing multiple tasks or working on projects for prolonged hours, this monitor offers flexible viewing, reduces eye and neck strain, and enhances physical comfort to support a more efficient workflow.
Exceptional Color Precision
Experience true-to-life visuals with a 98% DCI-P3 color gamut, ensuring your presentations, graphic designs, and on-screen content are vibrant and visually engaging.
HDR10 Delivers Stellar Contrast and Color Accuracy
Compatible with the industry-standard HDR10 High Dynamic Range, this monitor delivers highly defined color, brightness, and contrast greatly exceeding the capabilities of ordinary SDR products.
Connection Flexibility
HDMI, and DisplayPort (DP) inputs give you the freedom to connect your monitor to a wide range of devices. Simplify your workspace, expand your connectivity options, and streamline data transfer with our monitor’s integrated USB hub.
A New Angle on Workplace Ergonomics
Effortlessly swivel the display up to 60° degrees, tilt up to -5°~15° degrees and raise up to 130 mm. The tilt also enables you to use the monitor while standing or having a strategic group discussion around the screen.
Built-in Speakers
This monitor is integrated with dual 2.5-watt stereo speakers. When paired with incredible screen performance, the combination provides complete multi-sensory immersion.
Eye ProTech+ for Always-on Eye Protection
Work comfortably over extended periods with ViewSonic Eye ProTech+. Combining Flicker-Free technology with a built-in low blue light screen, this monitor helps maintain fresh-feeling eyes and prevent digital eye fatigue at all times without compromising image quality.
Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.
Specification
Display Size (in.)
38
Viewable Area (in.)
37.5
Panel Type
IPS Technology
Resolution
3840 x 1600
Resolution Type
WQHD+ (Wide QHD+)
Static Contrast Ratio
2,000:1 (typ)
Dynamic Contrast Ratio
50M:1
High Dynamic Range
HDR10
Light Source
LED
Brightness
300 cd/m² (typ)
Colors
1.07B
Color Space Support
10 bit (8 bit + A-FRC)
Aspect Ratio
21:9
Response Time (GTG w/OD)
4.785ms
Viewing Angles
178º horizontal, 178º vertical
Backlight Life (Hours)
30000 Hrs (Min)
Curvature
2300R
Refresh Rate (Hz)
75
Variable Refresh Rate Technology
Yes
Low Blue Light
Hardware solution
Flicker-Free
Yes
Color Gamut
DCI-P3: 98% size (Typ)
NTSC: 95% size (Typ)
sRGB: 134% size / 100% coverage (Typ)
Pixel Size
0.229 mm (H) x 0.229 mm (V)
Surface Treatment
Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max)
3840×1600
Mac Resolution (max)
3840×1600
PC Operating System
Windows 10/11 certified; macOS tested
Mac Resolution (min)
3840×1600
Connector
USB 3.2 Type B Up Stream
1
USB 3.2 Type C Up Stream; DisplayPort Alt mode
1 (96W power charger)
3.5mm Audio Out
1
HDMI 2.0 (with HDCP 2.2)
2
DisplayPort
1
Power in
DC Socket (Center Positive)
Audio
Internal Speakers
2.5Watts x2
Power
Eco Mode (Conserve)
26W
Eco Mode (optimized)
29W
Consumption (typical)
32W
Consumption (max)
39W
Voltage
AC 100-240V
Stand-by
0.5W
Power Supply
External Power Adaptor
Additional Hardware
Kensington Lock Slot
1
Controls
Physical Controls
M, Right, Left, E, Power
On Screen Display
Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)
20% to 90%
Wall Mount
VESA Compatible
100 x 100 mm
Input Signal
Frequency Horizontal
HDMI (v2.0): 15 ~ 222KHz, DisplayPort (v1.4): 15 ~ 222KHz, Type C: 15 ~ 222KHz
Frequency Vertical
HDMI (v2.0): 30 ~ 75Hz, DisplayPort (v1.4): 48 ~ 75Hz, Type C: 48 ~ 75Hz
Video Input
Digital Sync
TMDS – HDMI (v2.0), PCI-E – DisplayPort (v1.4), Micro-Packet – Type C
Ergonomics
Height Adjust (mm)
130
Swivel
60º
Tilt (Forward/Back)
-5º / 15º
Weight (imperial)
Net (lbs)
20.7
Net Without Stand (lbs)
15.9
Weight (metric)
Net (kg)
9.4
Net Without Stand (kg)
7.2
Gross (kg)
13.3
Gross (lbs)
29.3
Dimensions (imperial) (wxhxd)
Packaging (in.)
45.3 x 20.7 x 7.5
Physical (in.)
35.33 x 14.85~19.96 x 9.36
Physical Without Stand (in.)
35.33 x 15.69 x 4.17
Dimensions (metric) (wxhxd)
Packaging (mm)
1150 x 525 x 190
Physical (mm)
897.5 x 377.2~507.2 x 237.8
Physical Without Stand (mm)
897.5 x 398.5 x 105.9
General
Regulations
Energy Star, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM
PACKAGE CONTENTS
VA3820C x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, DisplayPort Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
Warranty
*Warranty offered may differ from market to market
Power Management
Energy Star standards
