TP-LINK (EAP650-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 1x GB LAN, OFDMA, Free Software

TP-LINK (EAP650-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 1x GB LAN, OFDMA, Free Software

£104.99

Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Wi-Fi Rating: AX3000
  • Max Single Band Wi-Fi Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): Uplink: 1 x10/100/1000 Mbps Ethernet Port
    Downlink: 1 x 10/100/1000 Mbps Ethernet Port
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Antenna(s): 2 x Dual-Band Antennas
    2.4 GHz: 2 x 3 dBi
    5 GHz: 2 x 5 dBi
  • Button(s): “Reset, LED”
  • Power Supply: 802.3af/at PoE
  • Power Consumption: 11.5 W
  • Dimensions: 86 x 86 x 42.6 mm
  • Weatherproof: No
  • Frequency: 2.4 GHz and 5 GHz
  • EIRP: “<20 dBm (2.4GHz, EIRP)
    <22 dBm (5GHz band1 & 2, EIRP)
    <22 dBm (5GHz band3, EIRP)"
  • Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust on dBm)
    QoS(WMM)
    Seamless Roaming§
    Beamforming
    Rate Limit
    Load Balance
    Airtime Fairness
  • .: Band Steering
    Reboot Schedule
    Wireless Schedule
    RADIUS Accounting
    MAC Authentication
    Wireless Statistics
    Static IP/Dynamic IP
  • Security: “Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    VLAN
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3 Personal/Enterprise”
  • Quality of Service: QoS(WMM)
  • Management: Omada App
    Omada Hardware Controller (OC300)
    Omada Hardware Controller (OC200)
    Omada Software Controller
    Omada Cloud-Based Controller
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP
    System Logging Local/Remote Syslog
    SSH
    Web-based Management
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning
  • Additional Features: See Overview
  • Environment: Operating Temperature: 0–40 °C (32–104 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
    Installation Guide
    Mounting Kits
  • Package Type: Retail
  • Package Weight: 0.3240 kg
  • Warranty: Limited Lifetime

In stock

EAN: 4897098682104 SKU: EAP650-WALL Category:

Description

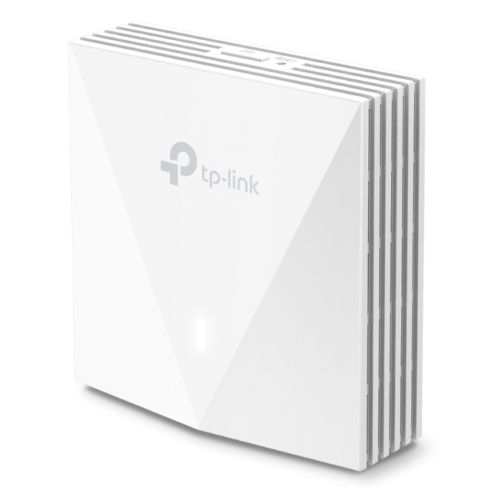

AX3000 Wall Plate WiFi 6 Access Point


  • Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Gigabit Port: Connect wired devices with one downlink gigabit port.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.







Dedicated Complete Private WiFi Network in Each Room

Hospitality – Room-by-room connection with elegant appearance
Dormitory – Stable wireless and wired connections
Apartment – Private and secure network access for every family
Villa – Whole-home WiFi coverage with seamless roaming
Meeting Room – Faster streaming, downloading, video conferencing, and everything to satisfy your needs





Lightning-Fast AX3000 WiFi 6 Speeds

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.





Better User Experience with High-Performance WiFi 6 Connectivity

The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.





More than Speed, Security Matters

Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.





Gigabit Ports to Bridge Network

The gigabit downlink port allows to connect wired device to the gigabit network.





Quick, Simplified Installation

With an easy-to-install design, there is no need to bring someone in to install our EAP.
Effortless Deployment with PoE Powered

With 802.3af/802.3at PoE support, there's no need for more wiring. Plug it into the existing Ethernet cables, and you're ready.





Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network





Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface.





Easy Management with the Omada App

Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.




Additional information

Weight 0.324 kg
Brand

TP-LINK
MPN

EAP650-WALL
