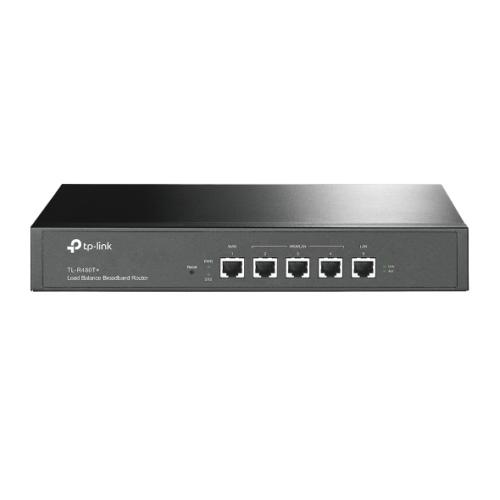

TP-LINK (TL-R480T+) Load Balance Broadband Router, 1 WAN, 1 LAN, 3 Changeable WAN/LAN Ports, Captive Portal

Description

Specification

• Type: Load Balance Router
• Connectivity: Wired
• Max Wireless Transfer Rate: None
• Max Wired Transfer Rate: 10/100 Mbps
• Interface(s): 1 x Fixed Ethernet WAN Port
  1 x Fixed Ethernet LAN Port
  3 x Changeable Ethernet WAN/LAN Ports
• IEEE Standards & Protocols: “IEEE 802.3, IEEE802.3u, IEEE802.3x
  TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS”
• Standards: –
• Button(s): Reset Button
• Power Supply: Internal Universal Power Supply
  AC100-240V~50/60Hz input
• Antenna(s): –
• Dimensions: (W x D x H) 294 x 180 x 44 mm
• Wireless Functions: –
• Security: Attack Defense
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN

  Filtering
  MAC Filtering
  URL/Keywords Filtering

  ARP Inspection
  Sending GARP Packets
  ARP Scanning by WAN/LAN
  IP-MAC Binding

  Access Control
  Source/Destination IP Based Access Control

• DHCP: DHCP Server/Client
  DHCP Address Reservation
• VPN Support: –
• Management: “Service
  Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
  UPnP

  Maintenance
  Web Management Interface, Remote Management
  Export & Import Configuration, SNMP
  Diagnostics(Ping & Traceroute), NTP Synchronize
  Syslog Support”

• Dynamic DNS: Yes
• USB Application: –
• Advanced Features: See Overview
• Environment: Operating Temperature: 0C to 40C
  Storage Temperature: -40C to 70C
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
• Package Contents: TL-R480T+
  Power Cord
  RJ-45 Ethernet Cable
  Installation Guide
  Rack-mount Kit
• Package Type: Retail
• Package Weight: 2.0200 kg
• Warranty: Limited Lifetime
